4x4 & 12x16 Windmill Tile Pattern Calculator
This layout repeats a 16x28 module of three tiles in two sizes — two 12x16 and one 4x4. The same tile sizes are laid to a different module in Windmill Pattern. The 4x4 tile it uses also stands on its own — 4x4 Tile Pattern.

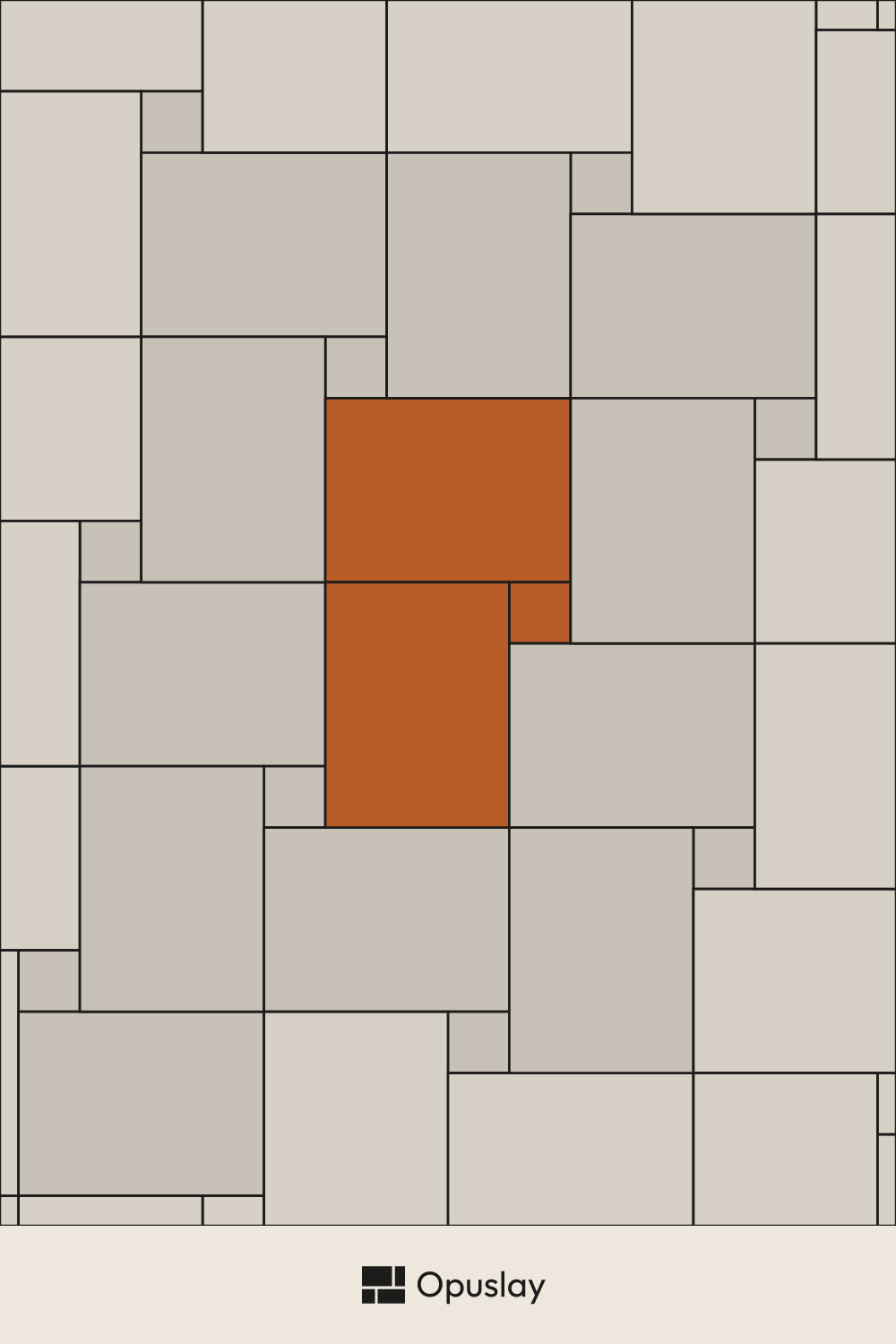

400x300 & 100x100 Windmill
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 30x40 cm | 2 | 96.0% | 70 | 7.20 m² |
| 10x10 cm | 1 | 4.0% | 30 | 0.30 m² |
| Total | 3 | 100% | 100 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 10x10 cm | 32 tiles | 0.32 m² |
| 30x40 cm | 65 tiles | 7.80 m² |
Total 97 tiles · 8.12 m² (incl. 8% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 2.2 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.6 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 400x300 & 100x100 Windmill layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
