9x36 Tile Pattern

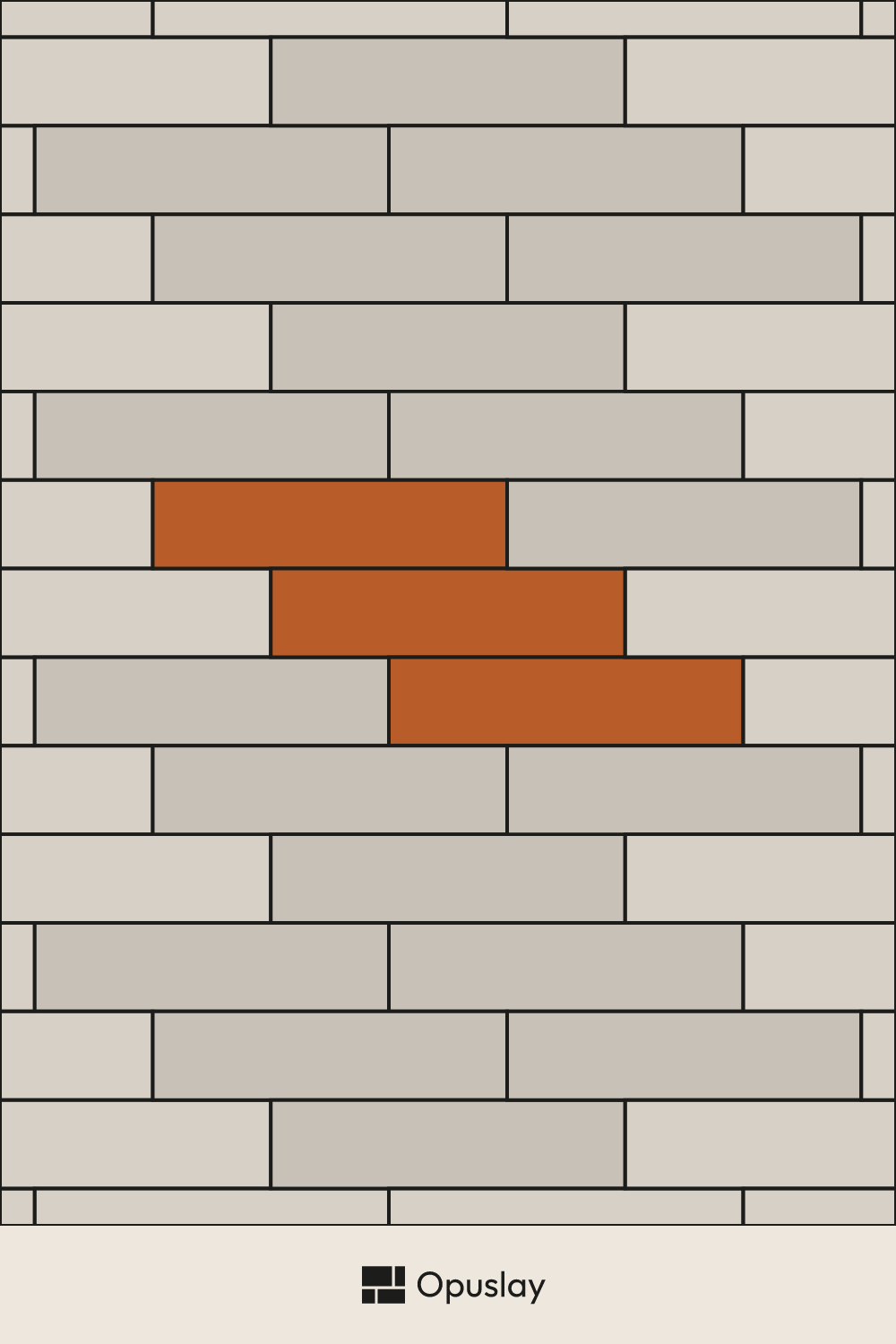

The 9x36 running bond pattern lays a wide, wood-look plank tile with a 1/3 offset between rows, the layout most installers use to imitate the staggered look of engineered wood flooring while following ANSI guidance to limit lippage on a tile this long.
Last updated: 2026-07-05
9x36 Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 22.5x90 cm | 3 | 100.0% | 48 | 7.50 m² |
| Total | 3 | 100% | 48 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 22.5x90 cm | 45 tiles | 9.11 m² |
Total 45 tiles · 9.11 m² (incl. 22% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.9 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.2 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 9x36 Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 9x36 Tile Pattern
9x36 is part of the same wood-look plank tile family as 6x24 and 8x48, sized to closely mimic the proportions of engineered hardwood planks, and running bond is the layout most associated with that flooring look.
Because the tile exceeds the roughly 15-inch length threshold in ANSI A108.02, a 1/3 offset is used rather than the 50% half-lap traditionally used on wood flooring, to avoid lippage while still producing a convincingly staggered, plank-like appearance.
Every 9x36 plank size on this page is a grid dimension — the tile plus its grout joint. A nominal 9x36 plank is a slightly smaller fired tile set on a 225x900 mm grid, the joint making up the difference; the calculator counts grid cells, which is exactly what you set out on the floor, so the tile count is exact rather than an estimate. Wood-look porcelain planks this long are usually rectified — cut to a precise size — so they sit on a tight, even joint.
Frequently Asked Questions
What offset should I use for 9x36 plank tile?
A 1/3 offset is recommended for 9x36 tile, following ANSI A108.02 guidance for tile longer than about 15 inches, while still giving a wood-flooring-style staggered look.
Is 9x36 tile meant to look like wood flooring?
Yes — 9x36 is a common size in the wood-look plank porcelain category, designed to mimic the proportions and staggered joint pattern of engineered hardwood flooring.
How does 9x36 compare to 6x24 or 8x48 plank tile?
All three are part of the same wood-look plank family at different width-to-length ratios; 9x36 sits between 6x24 and 8x48 in overall size, offering a similar staggered running-bond look.
How much waste should I allow for a 9x36 running bond floor?
A standard 10% waste allowance is typical, with more allowance in rooms with many corners, transitions, or a herringbone-style border.
How wide should the grout joint be for 9x36 plank tile?
Joint width isn't a free choice. ANSI A108.02 §4.3.8 ties it to how much the tiles vary in size (their caliber): the joint must be at least three times that variation, and never less than 1/16". On plank tile this long the practical minimum is about 1/8" for rectified tile (3/16" if it isn't rectified), plus a little more if the planks show any warp — worth checking, since long planks are the most prone to warp.
