18x18 Tile Pattern

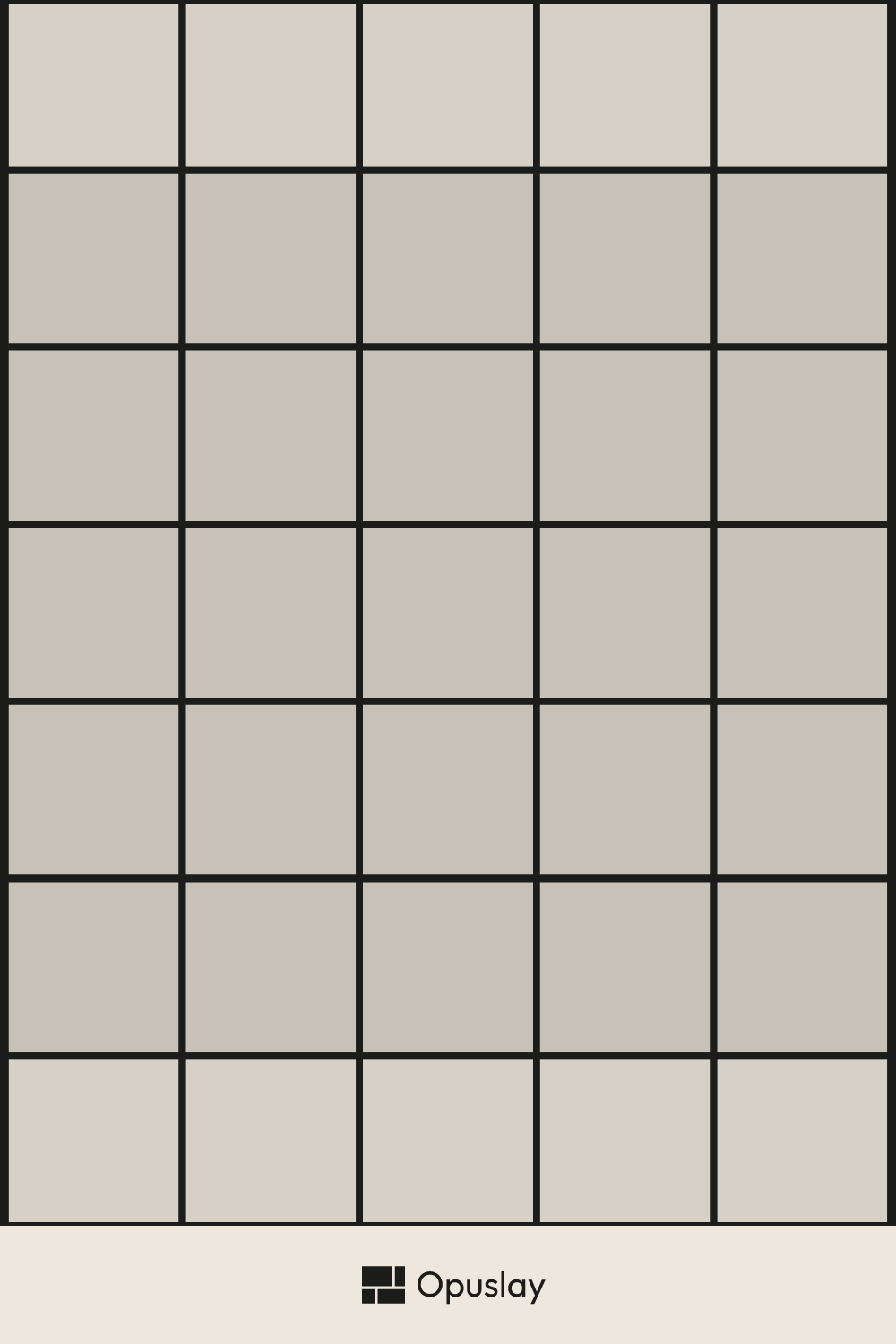

The 18x18 stack bond pattern lays a single 18"x18" tile with no offset between rows, forming an aligned grid — the layout most commonly associated with this popular mid-size floor tile.
Last updated: 2026-07-05
18x18 Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 45x45 cm | 1 | 100.0% | 42 | 7.50 m² |
| Total | 1 | 100% | 42 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 45x45 cm | 46 tiles | 9.31 m² |
Total 46 tiles · 9.31 m² (incl. 24% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.5 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 2.5 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 18x18 Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 18x18 Tile Pattern
18x18 became a widely used step up from 12x12 as porcelain and ceramic tile manufacturing allowed for larger, more consistent formats, and it's typically installed as a simple straight grid in the same way as its smaller predecessor.
As with other square tile, the lack of an obvious offset direction means stack bond remains the default expectation for 18x18, both in showrooms and in most installation guides.
Every 18x18 size on this page is a grid dimension — the tile plus its grout joint. A nominal 18x18 tile is a slightly smaller fired tile set on a 450x450 mm grid, the joint making up the difference; the calculator counts grid cells, which is exactly what you set out on the floor, so the tile count is exact rather than an estimate. Mid-size tile like this is sold both rectified and non-rectified, which mainly changes how tight a joint it will take.
Frequently Asked Questions
What is the standard pattern for 18x18 tile?
18x18 tile is most commonly installed in stack bond (straight-set, 0% offset), the same grid layout used for smaller square formats like 12x12.
How much waste should I allow for a 18x18 floor?
A standard 10% waste allowance is typical, with more allowance in rooms with many corners or a diagonal layout.
Is 18x18 tile a good size for a living room?
Yes — 18x18 is a popular mid-size choice for larger rooms like living rooms and open-plan areas, offering fewer grout lines than 12x12 without the cost or handling difficulty of larger formats.
Can I lay 18x18 tile diagonally?
Yes, a 45° diagonal stack bond is a common variation for 18x18 tile, though it typically requires 10-15% more material for edge cuts.
How wide should the grout joint be for 18x18 tile?
Joint width isn't a free choice. ANSI A108.02 §4.3.8 ties it to how much the tiles vary in size (their caliber): the joint must be at least three times that variation, and never less than 1/16". At 18" a side — over the roughly 15" large-format line — the practical minimum is about 1/8" for rectified tile and 3/16" for non-rectified, plus a little more if the tiles show any warp.
Prefer an offset brick look instead? See the 1/3 offset running bond layout
