Subway Tile Pattern

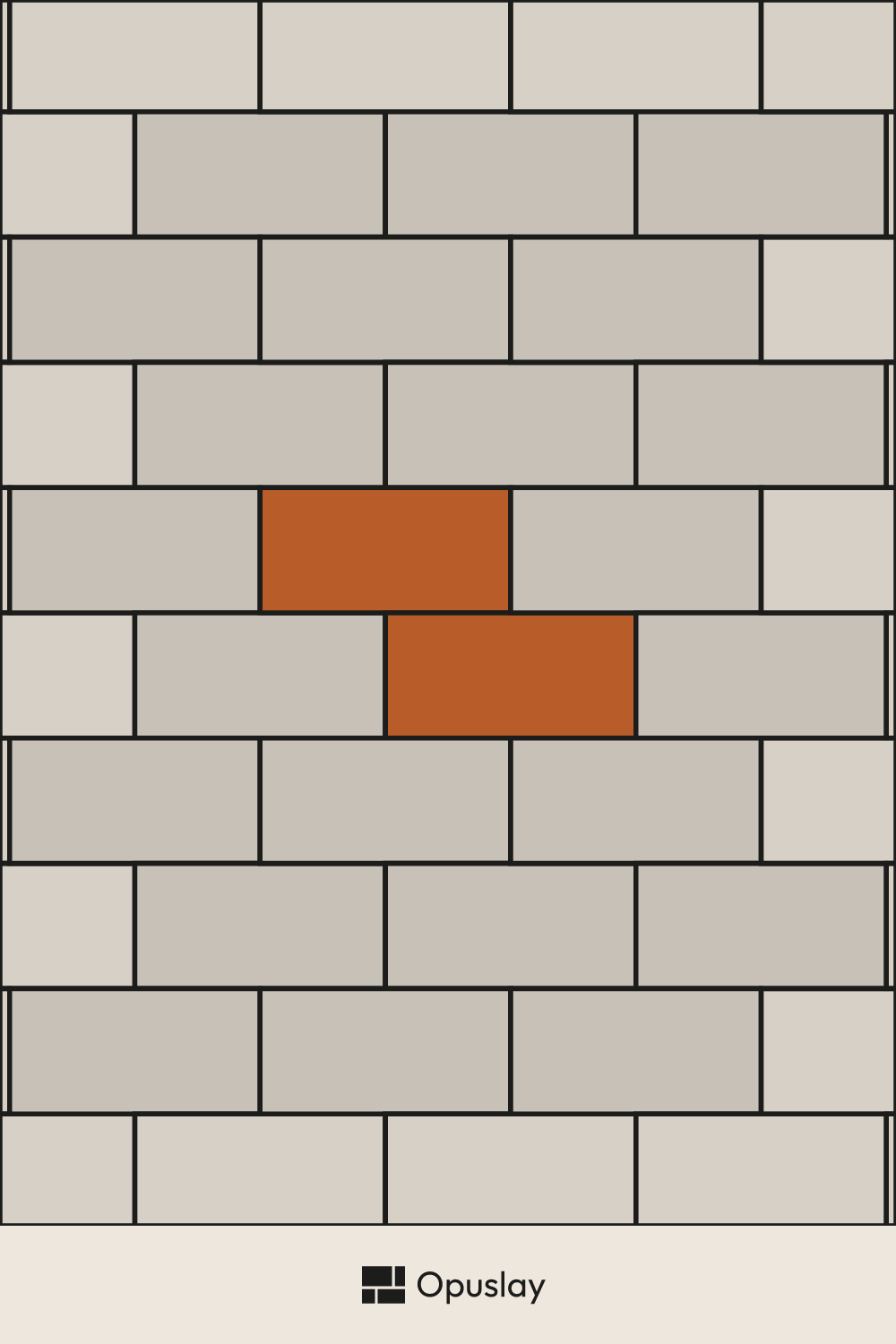

The subway tile pattern is a running bond layout built from a single small rectangular tile, traditionally 3"x6" glossy white ceramic. Each row is shifted by half the tile length (50% offset) relative to the row below, so every joint lands at the midpoint of the tile above and below it — the same brick-joint logic used in masonry, scaled down to a wall tile.
Last updated: 2026-07-05
Subway Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 7.62x15.24 cm | 2 | 100.0% | 676 | 7.50 m² |
| Total | 2 | 100% | 676 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 7.62x15.24 cm | 685 tiles | 7.95 m² |
Total 685 tiles · 7.95 m² (incl. 6% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 20.3 kg (1 × 50 lb bag) — recommended trowel: 6mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 6.7 kg (1 × 25 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 11.2 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Subway Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the Subway Tile Pattern
The look takes its name from the ceramic wall tiles used in early New York City subway stations, opened in 1904, where small glossy rectangular tiles were chosen for their durability and light-reflecting surface in underground spaces.
The 3"x6" size and 50% offset became a de facto standard well beyond transit architecture, and today most tile manufacturers sell a dedicated "subway tile" product line sized specifically for this layout.
Frequently Asked Questions
What offset is used for a classic subway tile pattern?
The traditional subway tile layout uses a 50% (half-lap) offset — each tile is centered over the joint of the row below. This differs from the 33% offset commonly recommended by ANSI A108.02 for larger-format tiles, which is not needed at 3x6 scale.
Is subway tile always 3x6 inches?
3"x6" is the historical and most common size, but the same running-bond pattern is also sold in other elongated rectangular formats (e.g. 4x8 or 4x12) under the "subway" name — the defining feature is the layout, not the exact dimensions.
How much waste should I allow for a subway tile pattern?
A standard 10% waste allowance is typical for a running-bond subway layout on a rectangular wall, with a higher margin if the room has many corners, niches, or a herringbone-style border.
Can subway tile be laid with a different offset than 50%?
Yes — a 1/3 offset is sometimes used instead of the classic half-lap, mainly for a slightly less repetitive look or when tile length varies slightly between pieces. The practical difference is how often the pattern repeats itself: a half offset brings the vertical joints back into line every second row, a third offset every third row. At this tile size neither is safer to lay than the other, so the choice is purely one of taste — though the 50% offset remains the layout most people mean by "subway tile pattern."
Prefer a straight grid look instead? See the stacked (straight grid) layout
