24x24 Tile Pattern

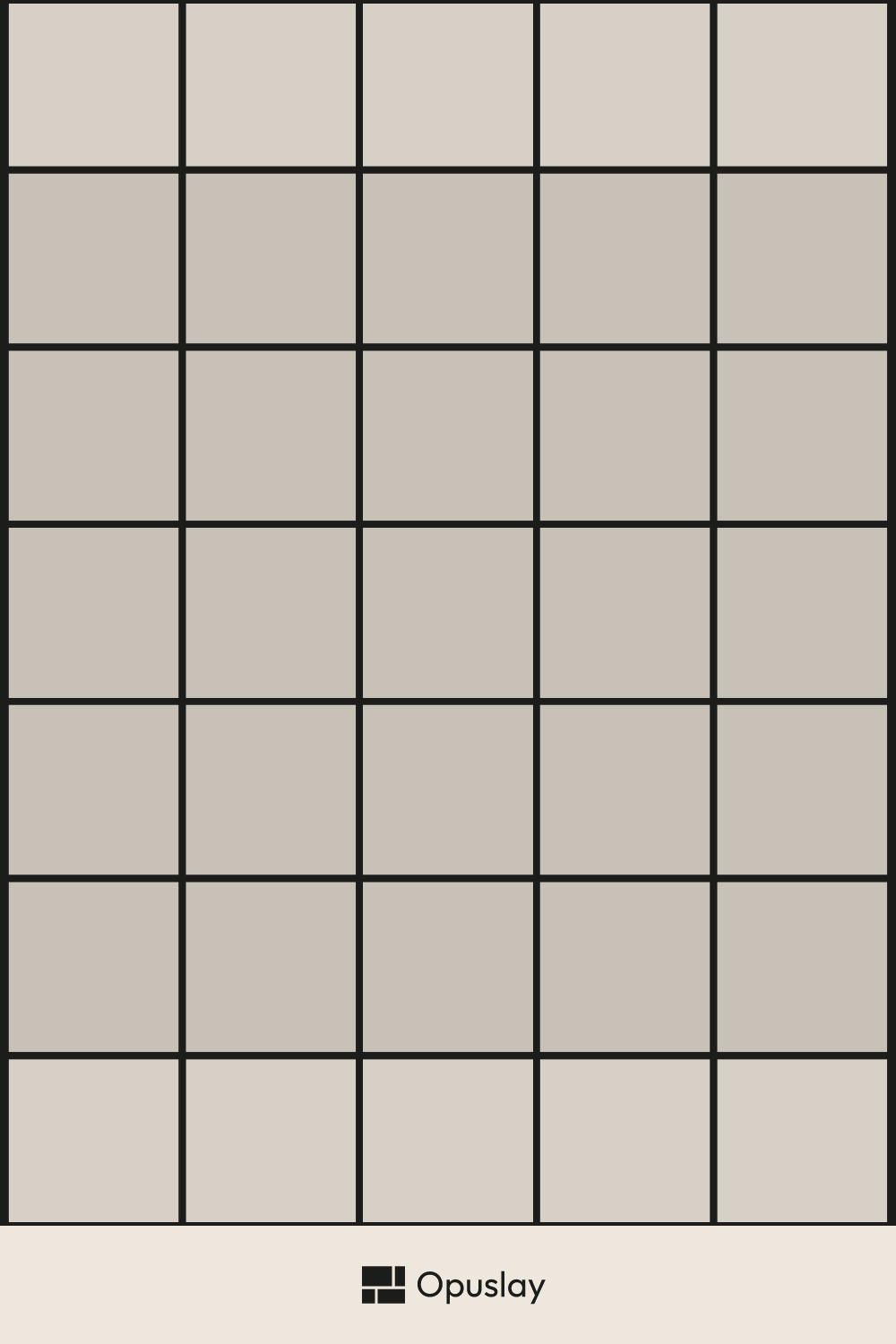

The 24x24 stack bond pattern lays a single 24x24 tile with no offset between rows, producing a clean architectural grid — the layout most commonly used for this large-format porcelain tile that has grown popular for both floors and walls.
Last updated: 2026-07-05
24x24 Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 60x60 cm | 1 | 100.0% | 25 | 7.50 m² |
| Total | 1 | 100% | 25 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 60x60 cm | 25 tiles | 9.00 m² |
Total 25 tiles · 9.00 m² (incl. 20% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 1.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 24x24 Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 24x24 Tile Pattern
24x24 porcelain tile has become a staple large-format size in recent years, prized for its minimal grout lines and ability to make a room feel larger, and it's overwhelmingly installed in a straight grid. It is also the go-to format for terrazzo-look porcelain: the pattern is in the tile face rather than the layout, and the large straight grid lets the speckled surface read as one continuous field.
As with other square formats, an offset layout has no obvious visual direction on a 24x24 tile, and manufacturers of large-format rectified porcelain typically design their product specifically for a precise, aligned stack bond installation.
Every 24x24 size on this page is a grid dimension — the tile plus its grout joint. A nominal 24x24 tile is a slightly smaller fired tile set on a 600 mm grid, with the joint taking up the difference; the calculator counts grid cells, which is exactly what you set out on the floor, so the tile count is exact rather than an estimate. Large-format porcelain this size is usually rectified — cut to a precise size — so it sits on a tight, even joint and the aligned grid stays crisp.
Frequently Asked Questions
What is the standard layout for 24x24 tile?
24x24 tile is most commonly installed in stack bond (straight-set, 0% offset), taking advantage of its large-format, minimal-grout-line appearance.
Does 24x24 tile need to be rectified for stack bond?
Yes, it's strongly recommended — since joints align in both directions, rectified (precisely calibrated) tile gives the cleanest, most consistent grid on a large 24x24 format.
How much waste should I allow for a 24x24 floor?
A standard 10% waste allowance is typical for a rectangular room, with more allowance for rooms with many corners or a diagonal layout.
Is 24x24 tile good for small rooms?
It can work well even in smaller rooms, since fewer, larger tiles create fewer grout lines and can make a space feel more open, though careful planning is needed to minimize awkward cuts.
How wide should the grout joint be for 24x24 tile?
Joint width isn't a free choice. ANSI A108.02 §4.3.8 ties it to how much the tiles vary in size (their caliber): the joint must be at least three times that variation, and never less than 1/16". On large-format tile over 15" on a side the practical minimum is about 1/8" for rectified tile (3/16" if it isn't rectified), plus a little more if the tiles show any warp. Rectified 24x24 is usually calibrated tightly enough to sit near that 1/8" minimum.
Prefer an offset brick look instead? See the 1/3 offset running bond layout
