12x12 Tile Pattern

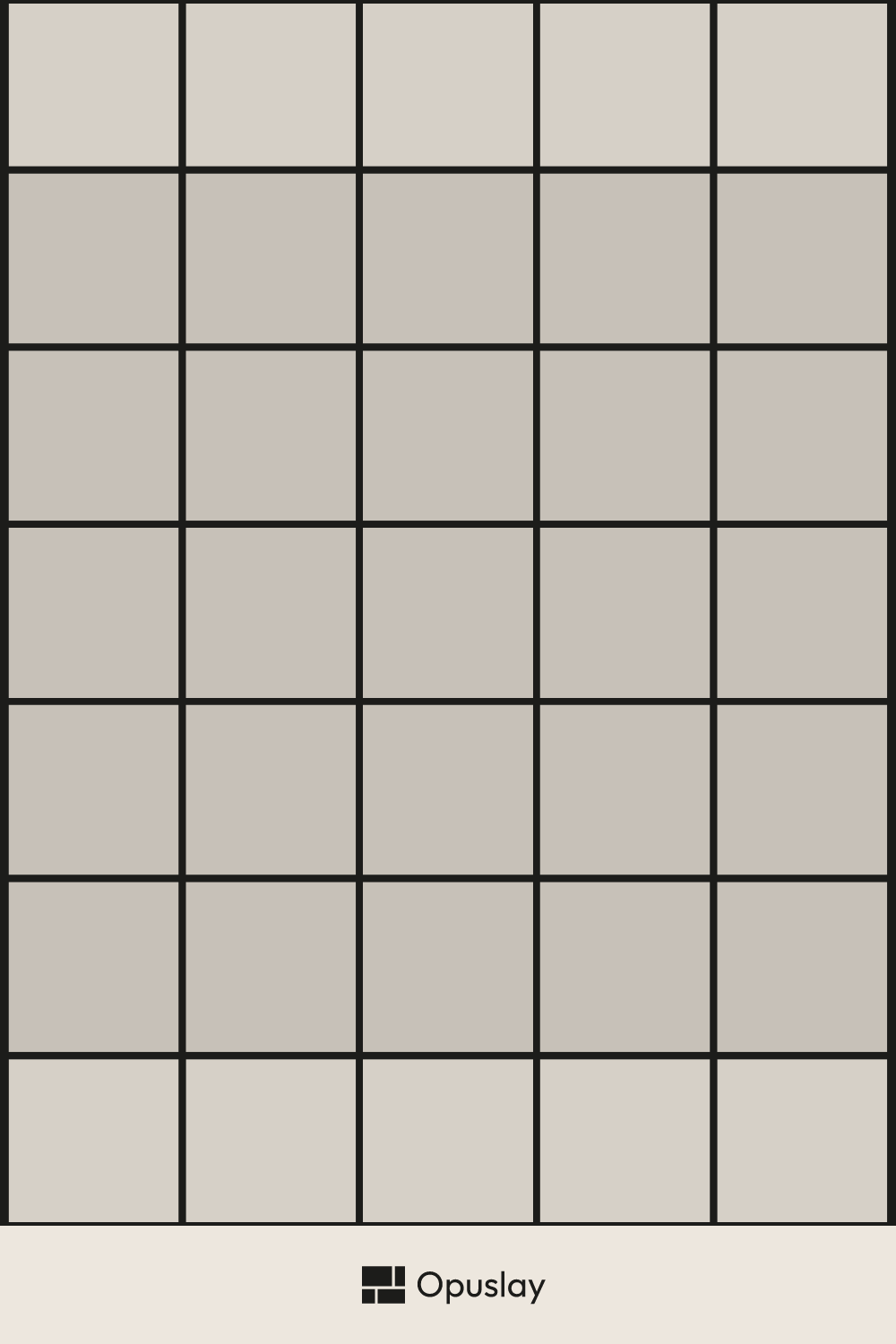

The 12x12 stack bond pattern lays a single 12"x12" tile with no offset between rows, forming a straight grid of aligned joints in both directions. It's the default layout most people picture for this classic, widely available floor tile size.
Last updated: 2026-07-05
12x12 Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 30x30 cm | 1 | 100.0% | 90 | 7.50 m² |
| Total | 1 | 100% | 90 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 30x30 cm | 90 tiles | 8.10 m² |
Total 90 tiles · 8.10 m² (incl. 8% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 2.3 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.8 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 12x12 Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 12x12 Tile Pattern
12x12 has been one of the most common floor tile sizes in North America for decades, historically installed in a straight grid across kitchens, entryways, and basements as an affordable, versatile flooring option. It is also a traditional cut for terrazzo tile — the pattern lives in the material itself, so the plain straight grid is all the layout it needs.
Because the tile is square, an offset pattern has no clear visual direction to follow, which is part of why straight-set stack bond remains the default choice for 12x12 tile rather than a brick-style running bond.
Frequently Asked Questions
What is the standard layout for 12x12 tile?
The most common layout for 12x12 tile is stack bond (straight-set, 0% offset), forming a simple grid — this is the default most installers and manufacturers assume unless another pattern is specified.
How much waste should I allow for a 12x12 floor?
A standard 10% waste allowance is typical for a straightforward rectangular room, with more for rooms with many corners, closets, or a diagonal layout.
Is 12x12 tile still a popular size?
Yes, especially for entry-level and budget flooring projects — while larger formats like 24x24 have grown in popularity, 12x12 remains widely available and commonly used for smaller rooms.
Can 12x12 tile be laid diagonally instead of in a straight grid?
Yes — a diagonal (45°) stack bond is a common variation, though it uses roughly 10-15% more tile due to the additional edge cuts.
Prefer an offset brick look instead? See the running bond (brick offset) layout
