4x24 & 8x24 & 12x24 Tile Pattern Calculator

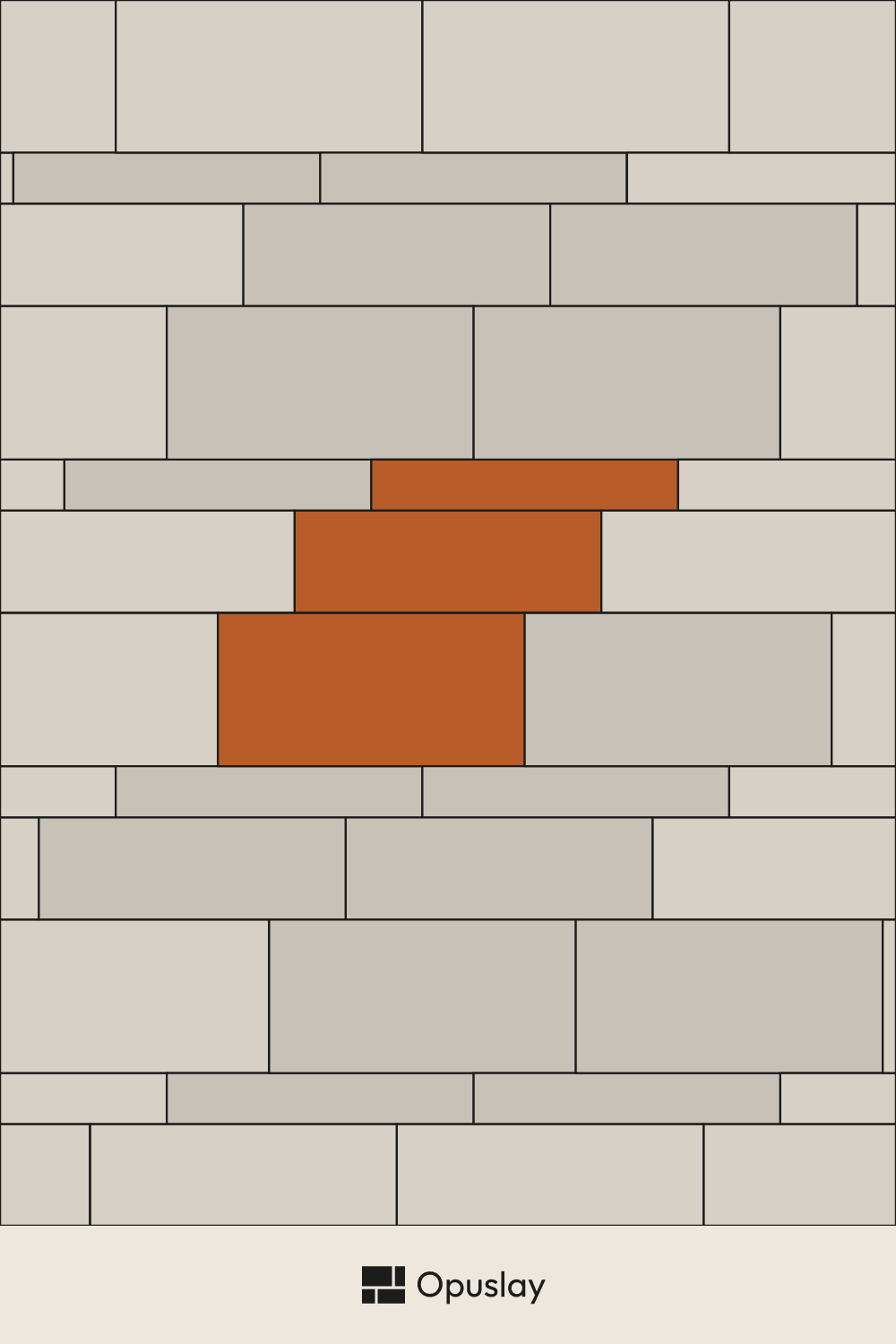

This layout repeats a 36x24 module of three tiles in three sizes — one 4x24, one 8x24 and one 12x24. The 12x24 tile it uses also stands on its own — 12x24 Tile Pattern.
Three-Tile Pattern — 4x24 & 8x24 & 12x24
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 10x60 cm | 1 | 16.7% | 29 | 1.50 m² |
| 20x60 cm | 1 | 33.3% | 24 | 2.40 m² |
| 30x60 cm | 1 | 50.0% | 23 | 3.60 m² |
| Total | 3 | 100% | 76 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 10x60 cm | 27 tiles | 1.62 m² |
| 20x60 cm | 22 tiles | 2.64 m² |
| 30x60 cm | 22 tiles | 3.96 m² |
Total 71 tiles · 8.22 m² (incl. 10% cuts & breakage)
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.3 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Three-Tile Pattern — 4x24 & 8x24 & 12x24 layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
