4x24 & 4x40 & 8x24 & 8x40 Tile Pattern Calculator

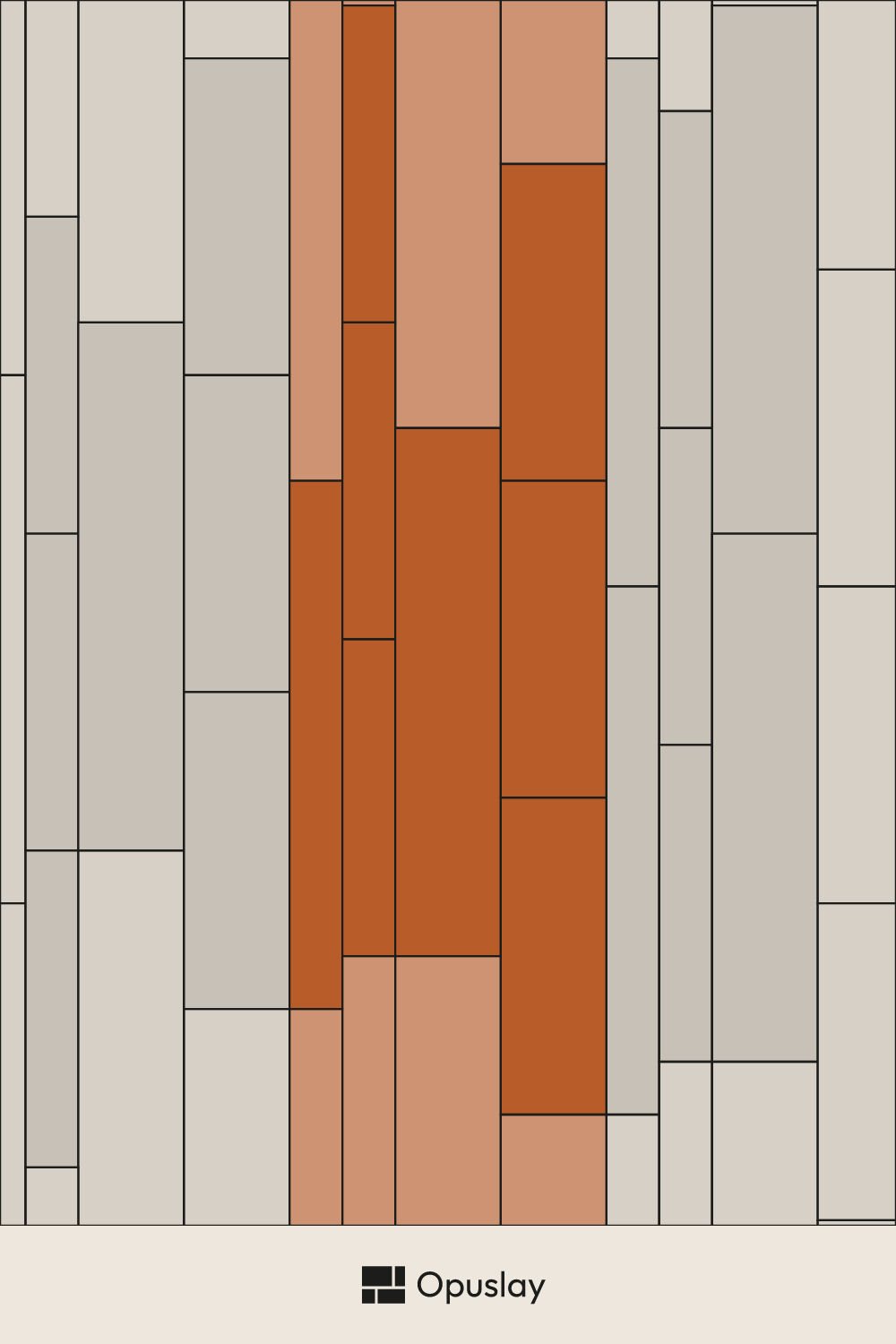

This layout repeats a 24x140 module of 16 tiles in four sizes — three 4x40, five 4x24, three 8x40 and five 8x24. The 4x24 tile it uses also stands on its own — 10x60 Chevron Pattern.
Multi-Tile Pattern — 4x24 & 4x40 & 8x24 & 8x40
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 10x100 cm | 3 | 16.7% | 17 | 1.25 m² |
| 10x60 cm | 5 | 16.7% | 25 | 1.25 m² |
| 20x100 cm | 3 | 33.3% | 17 | 2.50 m² |
| 20x60 cm | 5 | 33.3% | 25 | 2.50 m² |
| Total | 16 | 100% | 84 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 10x100 cm | 15 tiles | 1.50 m² |
| 10x60 cm | 23 tiles | 1.38 m² |
| 20x100 cm | 15 tiles | 3.00 m² |
| 20x60 cm | 23 tiles | 2.76 m² |
Total 76 tiles · 8.64 m² (incl. 15% cuts & breakage)
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.7 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 4.6 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Multi-Tile Pattern — 4x24 & 4x40 & 8x24 & 8x40 layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
