8x48 & 10x72 (Layout 2) Tile Pattern Calculator

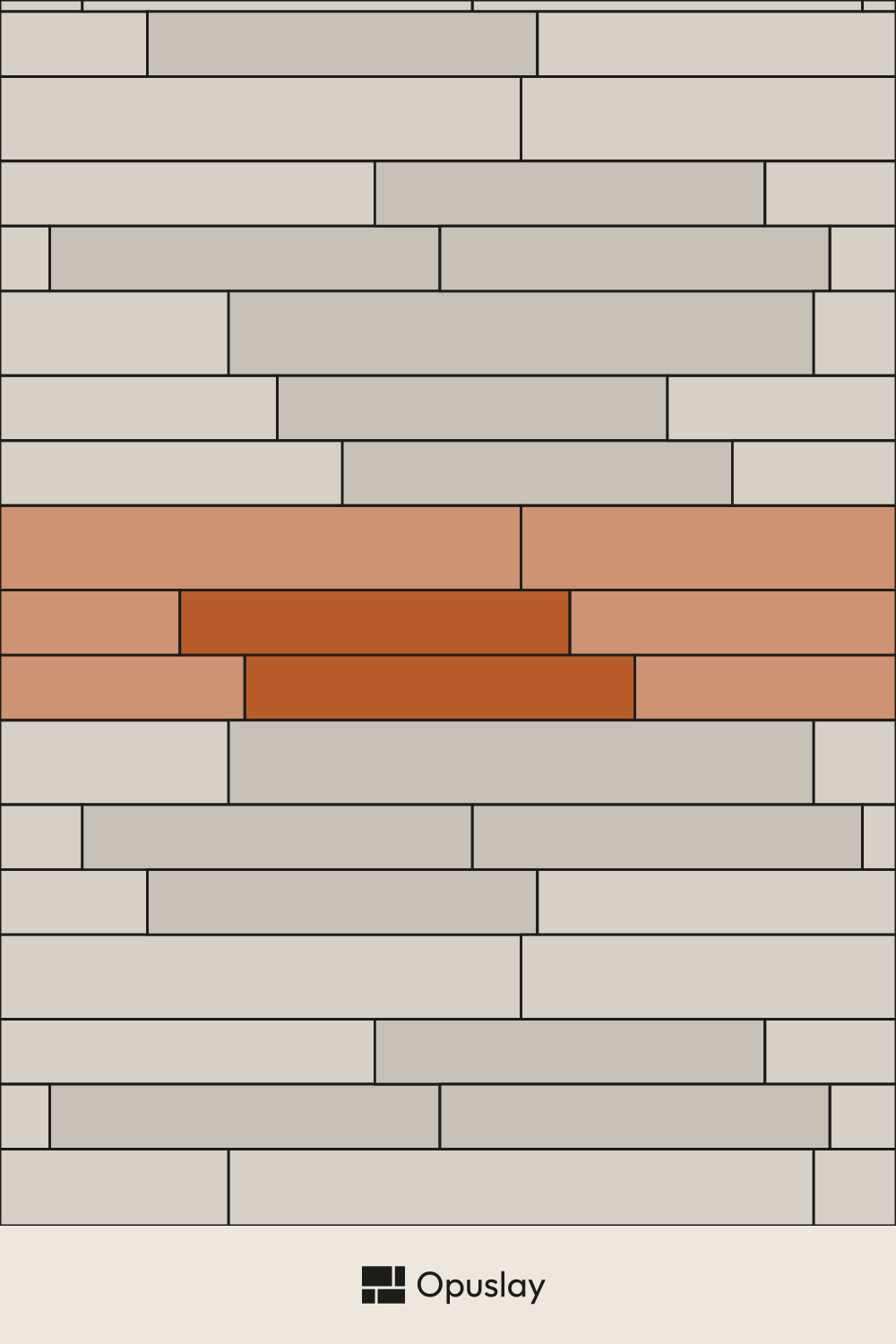

This layout repeats a 162x26 module of eight tiles in two sizes — two 10x72 and six 8x48. Working with a more common tile size? 9x36 Tile Pattern covers the closest standard format.
Two-Tile Pattern — 8x48 & 10x72 (Layout 2)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 25x180 cm | 2 | 38.5% | 10 | 3.00 m² |
| 20x120 cm | 6 | 61.5% | 27 | 4.50 m² |
| Total | 8 | 100% | 37 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x120 cm | 24 tiles | 5.76 m² |
| 25x180 cm | 9 tiles | 4.05 m² |
Total 33 tiles · 9.81 m² (incl. 31% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.8 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.0 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Two-Tile Pattern — 8x48 & 10x72 (Layout 2) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
