4x16 & 6x6 Tile Pattern Calculator

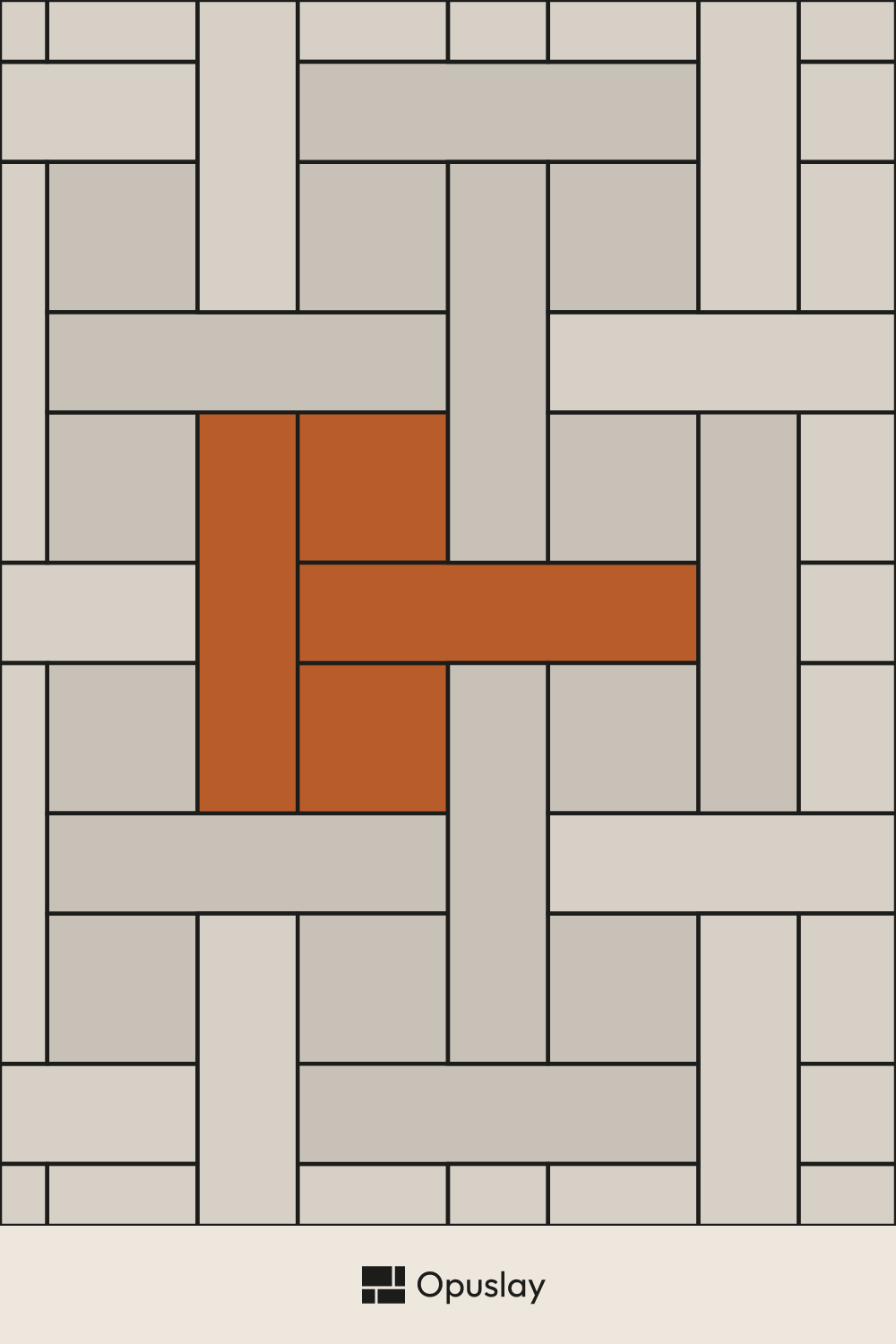

This layout repeats a 20x16 module of four tiles in two sizes — two 4x16 and two 6x6. Working with a more common tile size? 4x16 Tile Pattern covers the closest standard format.
Two-Tile Pattern — 4x16 & 6x6
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 10x40 cm | 2 | 64.0% | 131 | 4.80 m² |
| 15x15 cm | 2 | 36.0% | 120 | 2.70 m² |
| Total | 4 | 100% | 251 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 10x40 cm | 130 tiles | 5.20 m² |
| 15x15 cm | 126 tiles | 2.83 m² |
Total 256 tiles · 8.04 m² (incl. 7% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 4.4 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 7.3 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
