6x24 & 7x48 (Layout 1) Tile Pattern Calculator

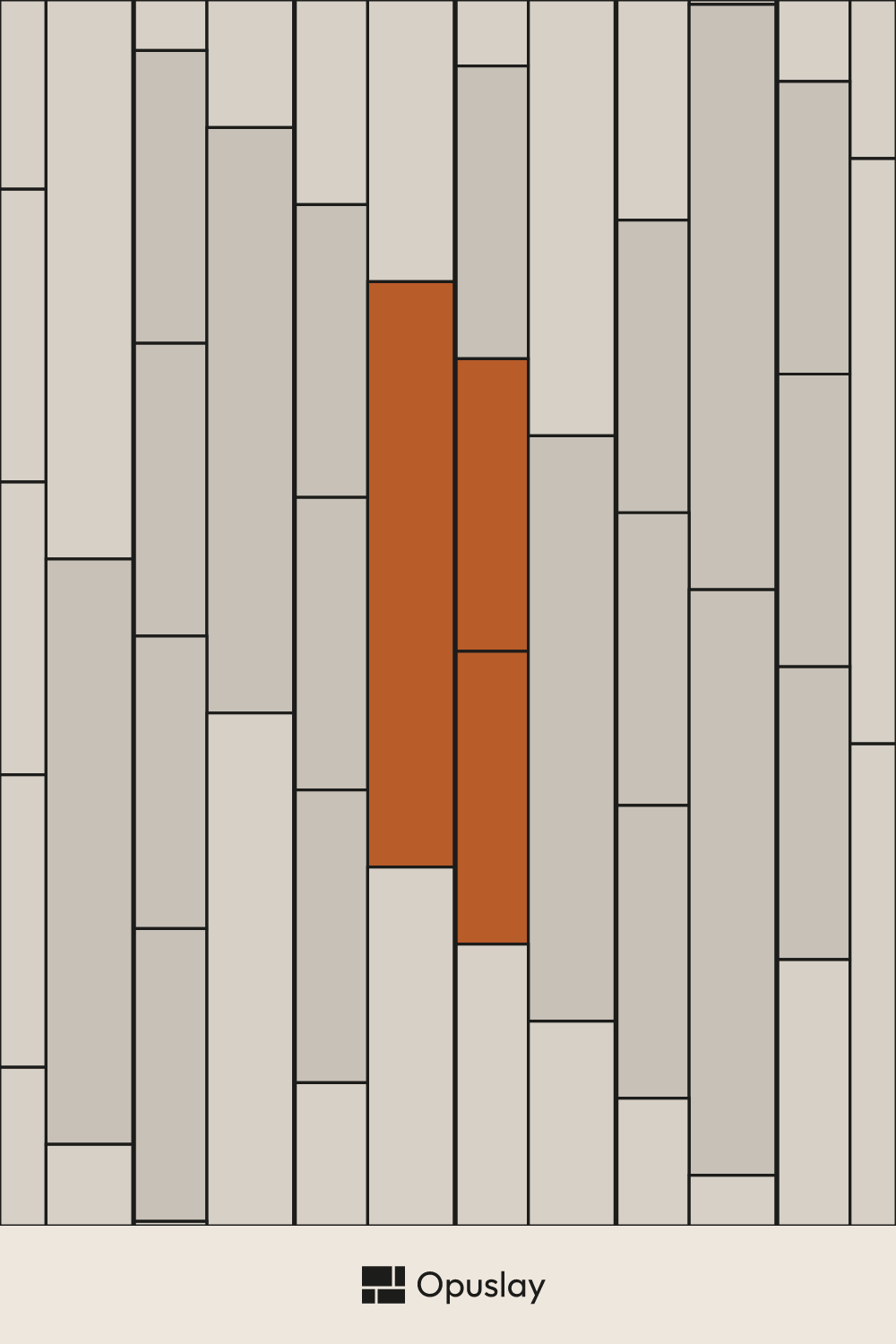

This layout repeats a 13x54 module of three tiles in two sizes — one 7x48 and two 6x24. Working with a more common tile size? 6x36 Herringbone Pattern covers the closest standard format.
Two-Tile Pattern — 6x24 & 7x48 (Layout 1)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 18x121.6 cm | 1 | 54.5% | 28 | 4.05 m² |
| 15x60.8 cm | 2 | 45.5% | 45 | 3.36 m² |
| Total | 3 | 100% | 73 | 7.41 m² |
What you'll need to buy
Tiles to buy
| 15x60.8 cm | 45 tiles | 4.10 m² |
| 18x121.6 cm | 23 tiles | 5.03 m² |
Total 68 tiles · 9.14 m² (incl. 23% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.0 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.5 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 4.1 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Two-Tile Pattern — 6x24 & 7x48 (Layout 1) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
