6x24 & 6.5x40 Tile Pattern Calculator

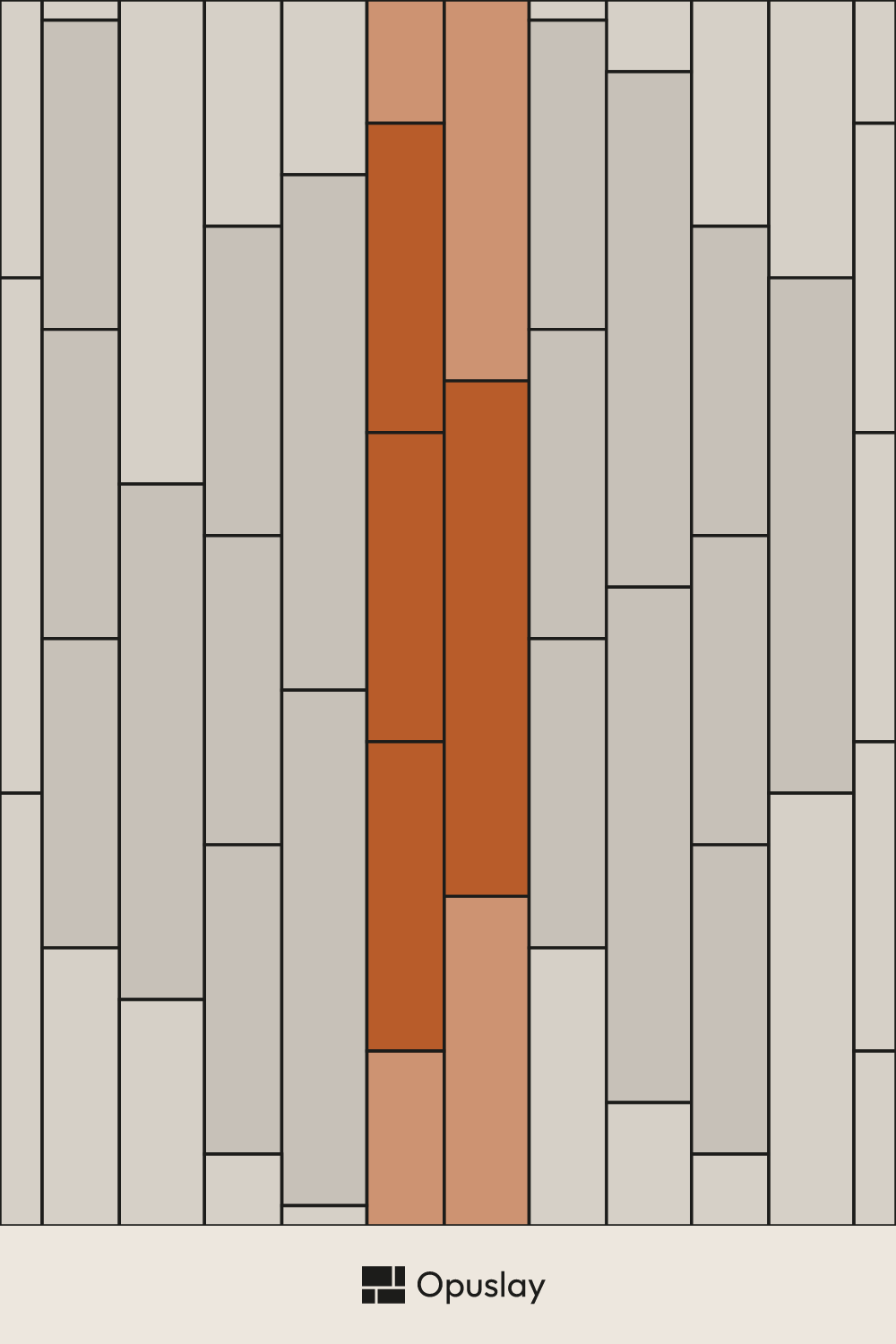

This layout repeats a 12.5x124 module of eight tiles in two sizes — five 6x24 and three 6.5x40. The 6x24 tile it uses also stands on its own — 6x24 Herringbone Pattern.
Two-Tile Pattern — 6x24 & 6.5x40
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 15x60 cm | 5 | 47.6% | 50 | 3.75 m² |
| 16.5x100 cm | 3 | 52.4% | 34 | 3.75 m² |
| Total | 8 | 100% | 84 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 15x60 cm | 46 tiles | 4.14 m² |
| 16.5x100 cm | 30 tiles | 4.95 m² |
Total 76 tiles · 9.09 m² (incl. 21% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.6 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 4.4 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
