24x24 & 24x48 (Layout 4) Tile Pattern Calculator

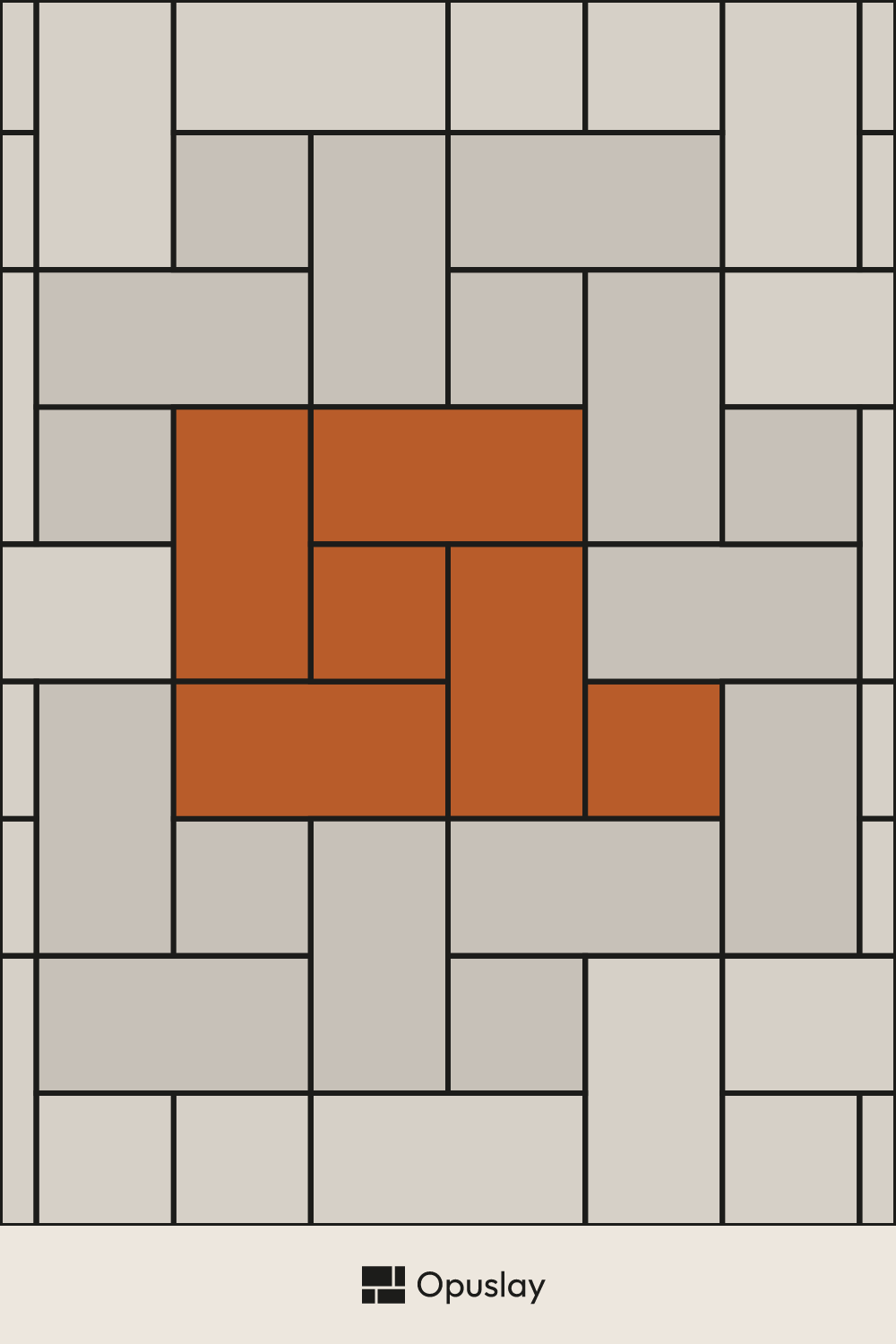

This layout repeats a 96x72 module of six tiles in two sizes — four 24x48 and two 24x24. The 24x24 tile it uses also stands on its own — 24x24 Tile Pattern.
Two-Tile Pattern — 24x24 & 24x48 (Layout 4)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 60x120 cm | 4 | 80.0% | 12 | 6.00 m² |
| 60x60 cm | 2 | 20.0% | 5 | 1.50 m² |
| Total | 6 | 100% | 17 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 60x120 cm | 13 tiles | 9.36 m² |
| 60x60 cm | 6 tiles | 2.16 m² |
Total 19 tiles · 11.52 m² (incl. 54% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 0.9 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 1.5 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Two-Tile Pattern — 24x24 & 24x48 (Layout 4) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
