12x12 & 16x24 Tile Pattern Calculator

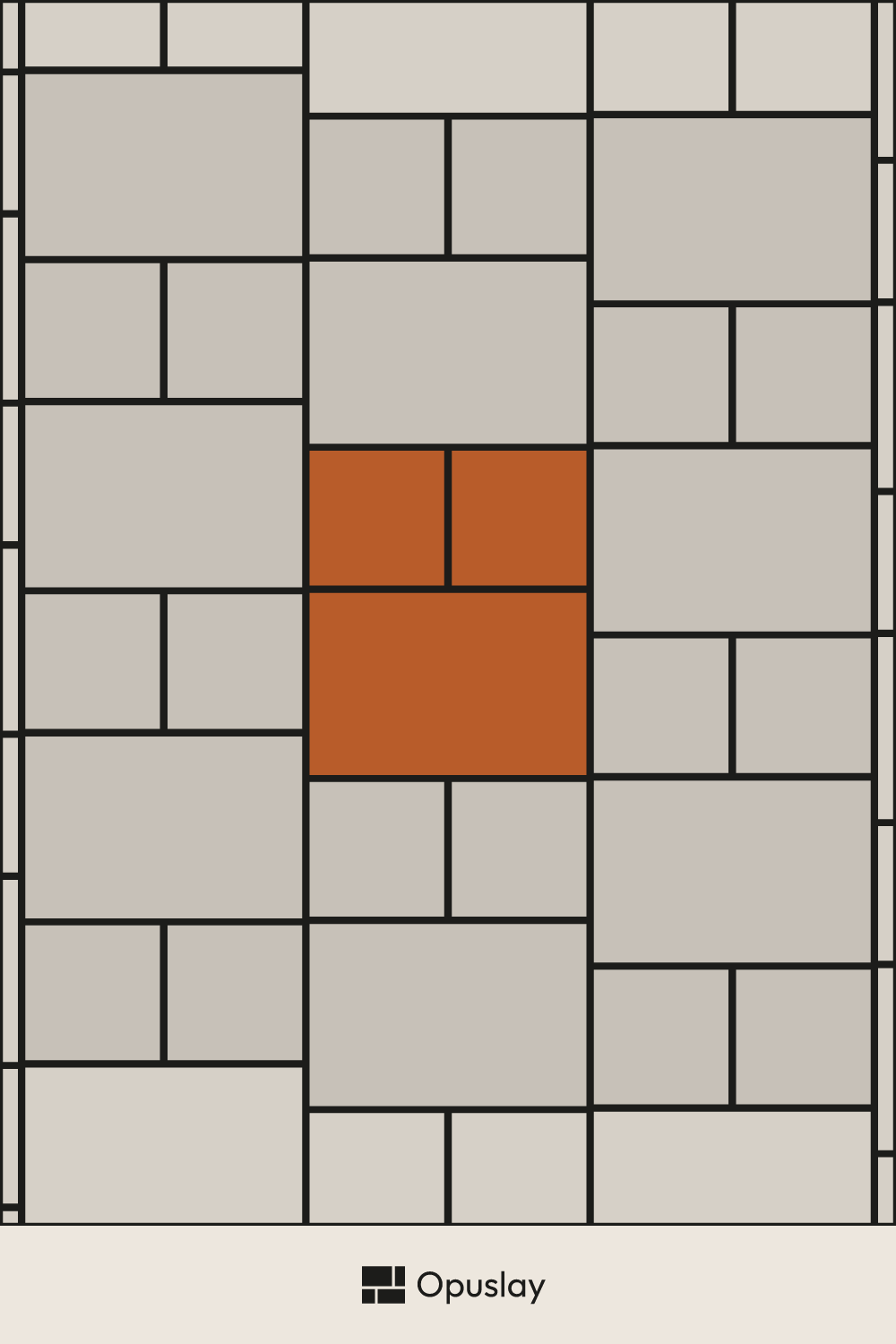

This layout repeats a 24.5x28.5 module of three tiles in two sizes — two 12x12 and one 16.5x24.5. Working with a more common tile size? 12x24 Tile Pattern covers the closest standard format.
Two-Tile Pattern — 12x12 & 16x24
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 30.5x30.5 cm | 2 | 42.6% | 38 | 3.18 m² |
| 40.8x61.4 cm | 1 | 57.4% | 20 | 4.19 m² |
| Total | 3 | 100% | 58 | 7.37 m² |
What you'll need to buy
Tiles to buy
| 30.5x30.5 cm | 40 tiles | 3.72 m² |
| 40.8x61.4 cm | 20 tiles | 5.01 m² |
Total 60 tiles · 8.73 m² (incl. 19% cuts & breakage)
- Thin-set adhesive: ≈ 39.8 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.7 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 2.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
