8x8 & 8x16 & 16x24 (Layout 2) Tile Pattern Calculator

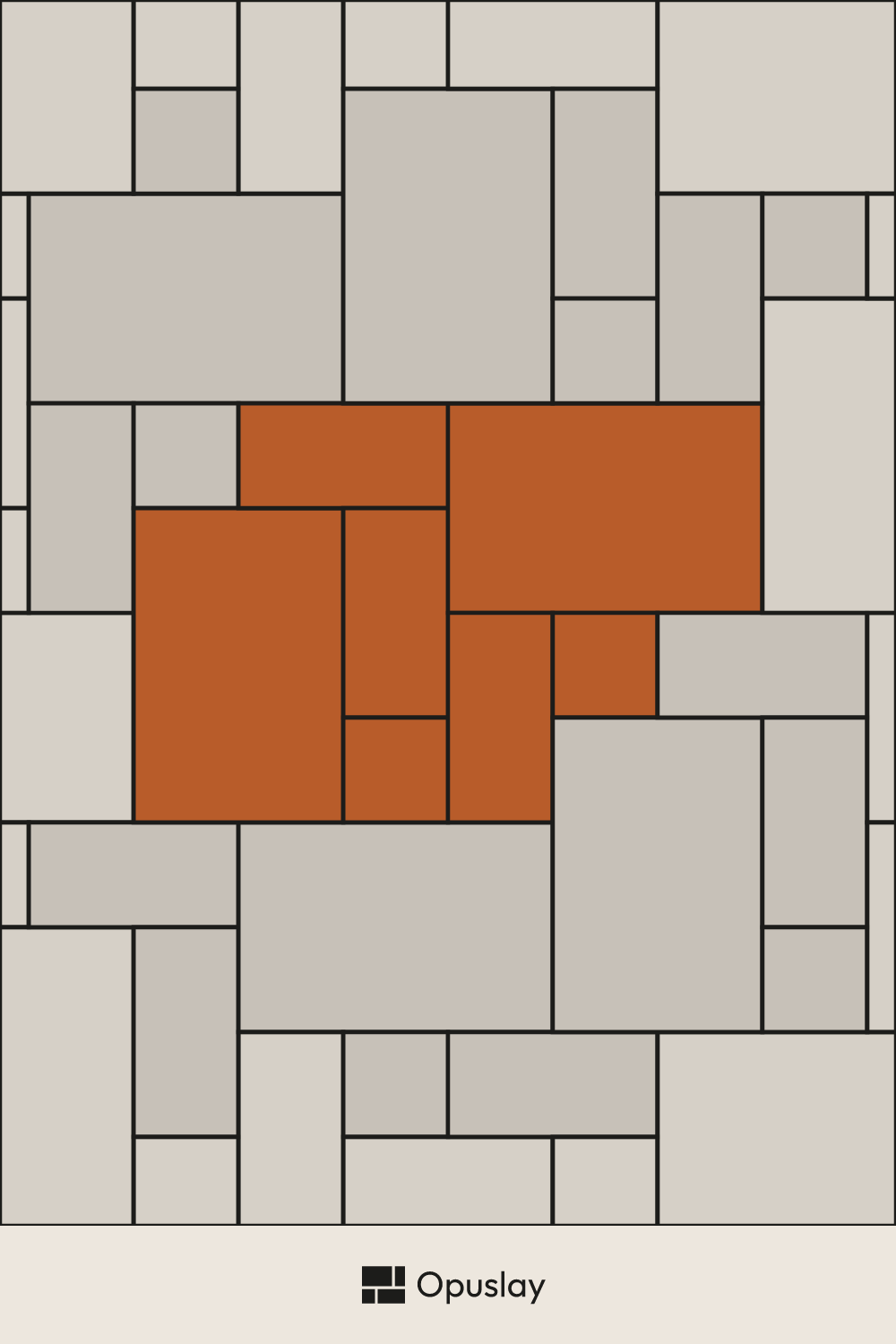

This layout repeats a 48x32 module of seven tiles in three sizes — two 16x24, three 8x16 and two 8x8. Working with a more common tile size? 12x24 1/3 Offset Running Bond covers the closest standard format.
Three-Tile Pattern — 8x8 & 8x16 & 16x24 (Layout 2)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 40x60 cm | 2 | 60.0% | 22 | 4.42 m² |
| 20x40 cm | 3 | 30.0% | 32 | 2.28 m² |
| 20x20 cm | 2 | 10.0% | 21 | 0.80 m² |
| Total | 7 | 100% | 75 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 21 tiles | 0.84 m² |
| 20x40 cm | 32 tiles | 2.56 m² |
| 40x60 cm | 22 tiles | 5.28 m² |
Total 75 tiles · 8.68 m² (incl. 16% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.0 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.3 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
