8x8 & 8x16 & 16x24 (Layout 1) Tile Pattern Calculator

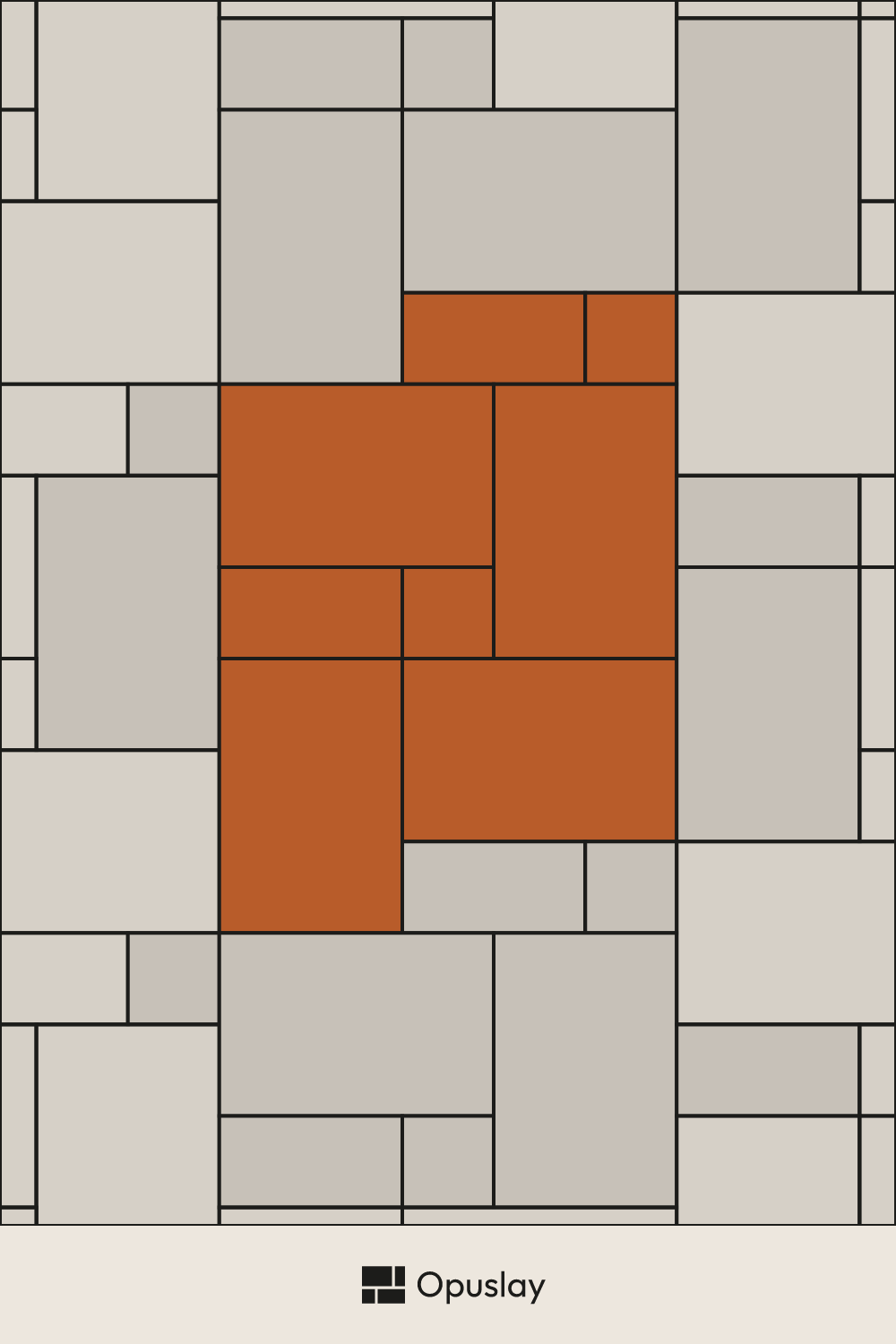

This layout repeats a 40x56 module of eight tiles in three sizes — two 8x16, two 8x8 and four 16x24. Working with a more common tile size? 12x24 1/3 Offset Running Bond covers the closest standard format.
Three-Tile Pattern — 8x8 & 8x16 & 16x24 (Layout 1)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 20x40 cm | 2 | 13.3% | 13 | 1.00 m² |
| 20x20 cm | 2 | 6.7% | 13 | 0.50 m² |
| 40x60 cm | 4 | 80.0% | 29 | 6.00 m² |
| Total | 8 | 100% | 55 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 14 tiles | 0.56 m² |
| 20x40 cm | 15 tiles | 1.20 m² |
| 40x60 cm | 27 tiles | 6.48 m² |
Total 56 tiles · 8.24 m² (incl. 10% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.7 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 2.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Three-Tile Pattern — 8x8 & 8x16 & 16x24 (Layout 1) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
