8x8 & 8x16 & 16x16 Tile Pattern Calculator

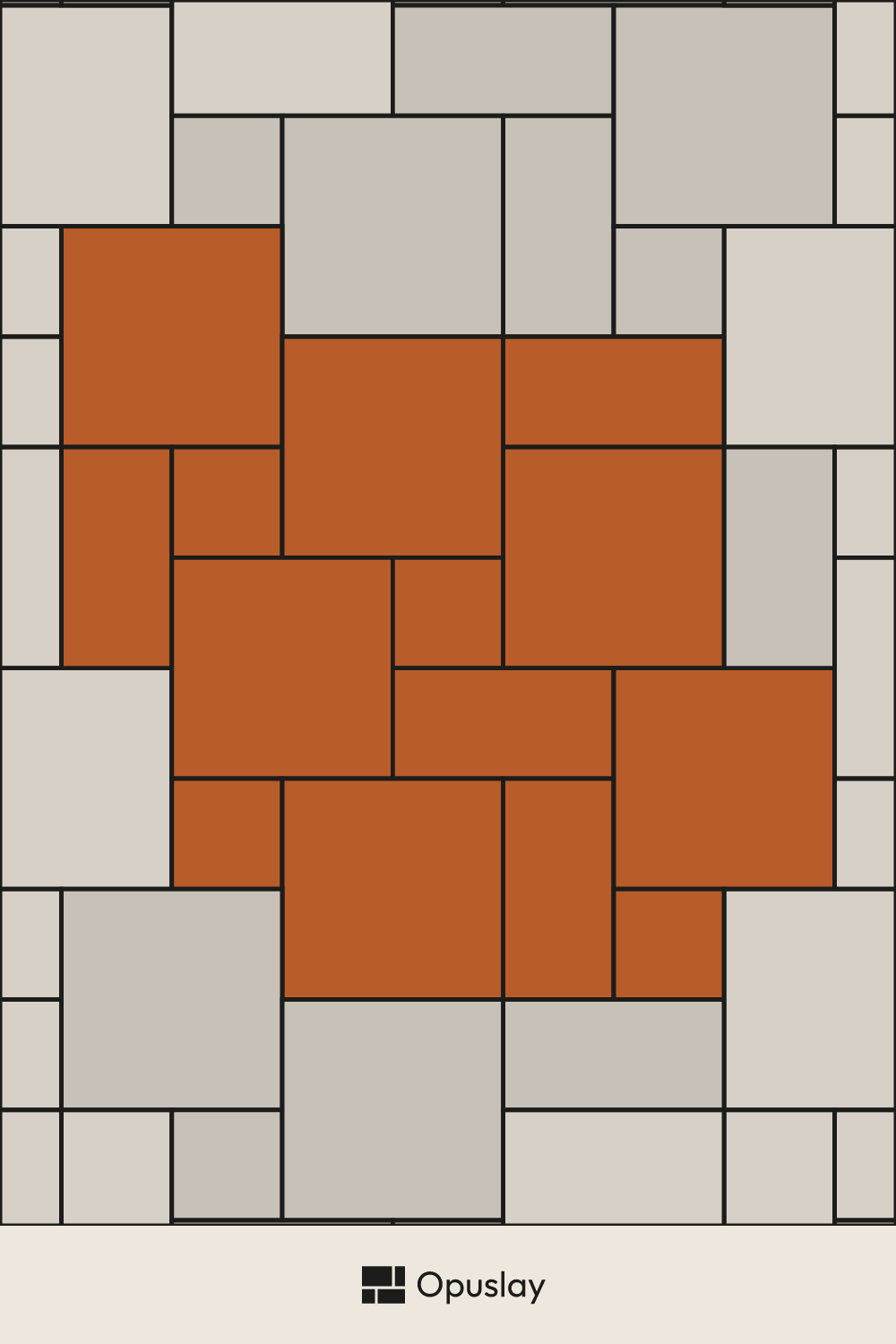

This layout repeats a 56x56 module of 14 tiles in three sizes — six 16x16, four 8x16 and four 8x8. Working with a more common tile size? 18x18 Tile Pattern covers the closest standard format.
Three-Tile Pattern — 8x8 & 8x16 & 16x16
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 40x40 cm | 6 | 66.7% | 40 | 5.18 m² |
| 20x40 cm | 4 | 22.2% | 20 | 1.48 m² |
| 20x20 cm | 4 | 11.1% | 22 | 0.84 m² |
| Total | 14 | 100% | 82 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 23 tiles | 0.92 m² |
| 20x40 cm | 21 tiles | 1.68 m² |
| 40x40 cm | 38 tiles | 6.08 m² |
Total 82 tiles · 8.68 m² (incl. 16% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 2.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.5 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Three-Tile Pattern — 8x8 & 8x16 & 16x16 layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
