6x36 & 8x48 & 8x72 Tile Pattern Calculator

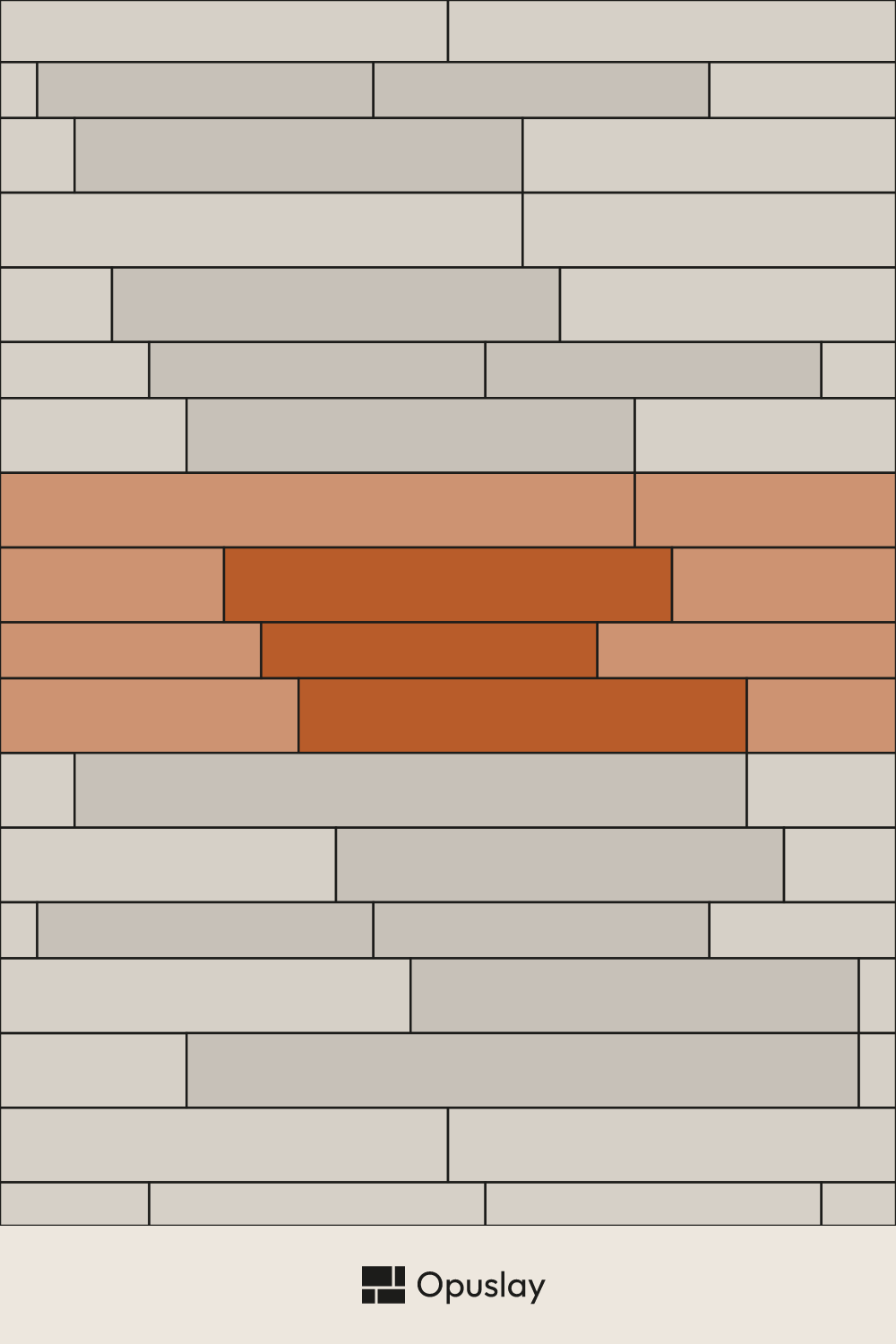

This layout repeats a 184x30 module of twelve tiles in three sizes — two 8x72, six 8x48 and four 6x36. The 6x36 tile it uses also stands on its own — 6x36 Herringbone Pattern.
Three-Tile Pattern — 6x36 & 8x48 & 8x72
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 20x180 cm | 2 | 26.7% | 10 | 2.40 m² |
| 20x120 cm | 6 | 53.3% | 24 | 3.75 m² |
| 15x90 cm | 4 | 20.0% | 12 | 1.35 m² |
| Total | 12 | 100% | 46 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 15x90 cm | 12 tiles | 1.62 m² |
| 20x120 cm | 22 tiles | 5.28 m² |
| 20x180 cm | 10 tiles | 3.60 m² |
Total 44 tiles · 10.50 m² (incl. 40% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.5 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
