10x10 & 10x20 & 20x20 Tile Pattern Calculator

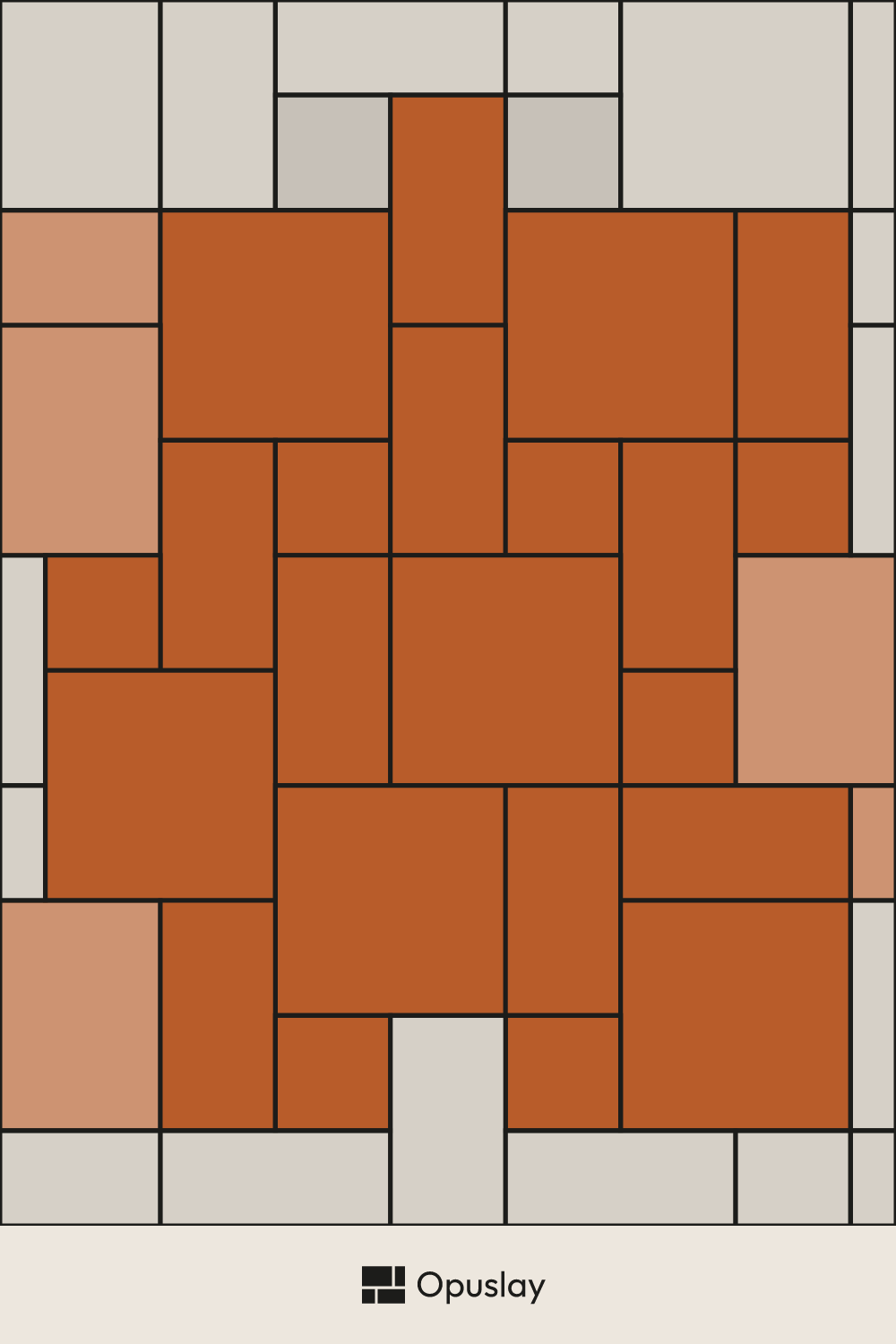

This layout repeats a 90x90 module of 27 tiles in three sizes — ten 10x20, nine 20x20 and eight 10x10. Working with a more common tile size? 18x18 Tile Pattern covers the closest standard format.
Three-Tile Pattern — 10x10 & 10x20 & 20x20
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 25x50 cm | 10 | 31.3% | 20 | 2.31 m² |
| 50x50 cm | 9 | 56.3% | 21 | 4.25 m² |
| 25x25 cm | 8 | 12.5% | 15 | 0.94 m² |
| Total | 27 | 100% | 56 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 25x25 cm | 16 tiles | 1.00 m² |
| 25x50 cm | 21 tiles | 2.63 m² |
| 50x50 cm | 19 tiles | 4.75 m² |
Total 56 tiles · 8.38 m² (incl. 12% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.7 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 2.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Three-Tile Pattern — 10x10 & 10x20 & 20x20 layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
