7x12 Diamond Tile Pattern Calculator
This layout sets a single 7x12 tile on a repeating 12x7 module. It belongs to the Rhombus family of layouts. The same tile sizes are laid to a different module in 7x12 Diamond Rhombus (Tumbling Blocks) Tile Pattern.

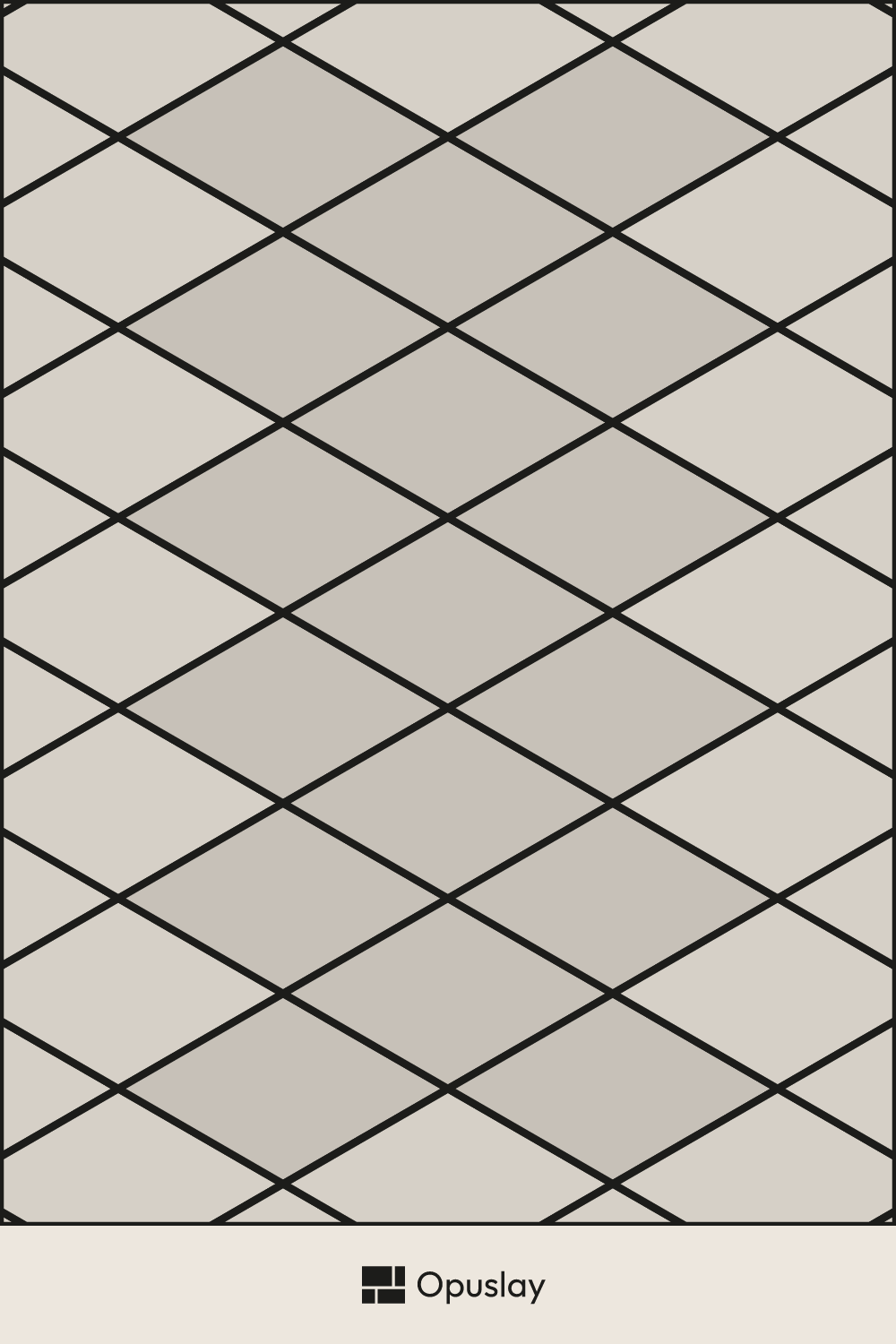

Rhombus Tile Pattern — 7x12
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 17.5x30.31 cm | 1 | 100.0% | 315 | 7.50 m² |
| Total | 1 | 100% | 315 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 17.5x30.31 cm | 341 tiles | 18.09 m² |
Total 341 tiles · 9.04 m² (incl. 21% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 3.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 5.1 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Rhombus Tile Pattern — 7x12 layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
See the tumbling blocks 3D cube (the same diamond in three orientations)
