6x6 & 2x2 Pinwheel Tile Pattern Calculator

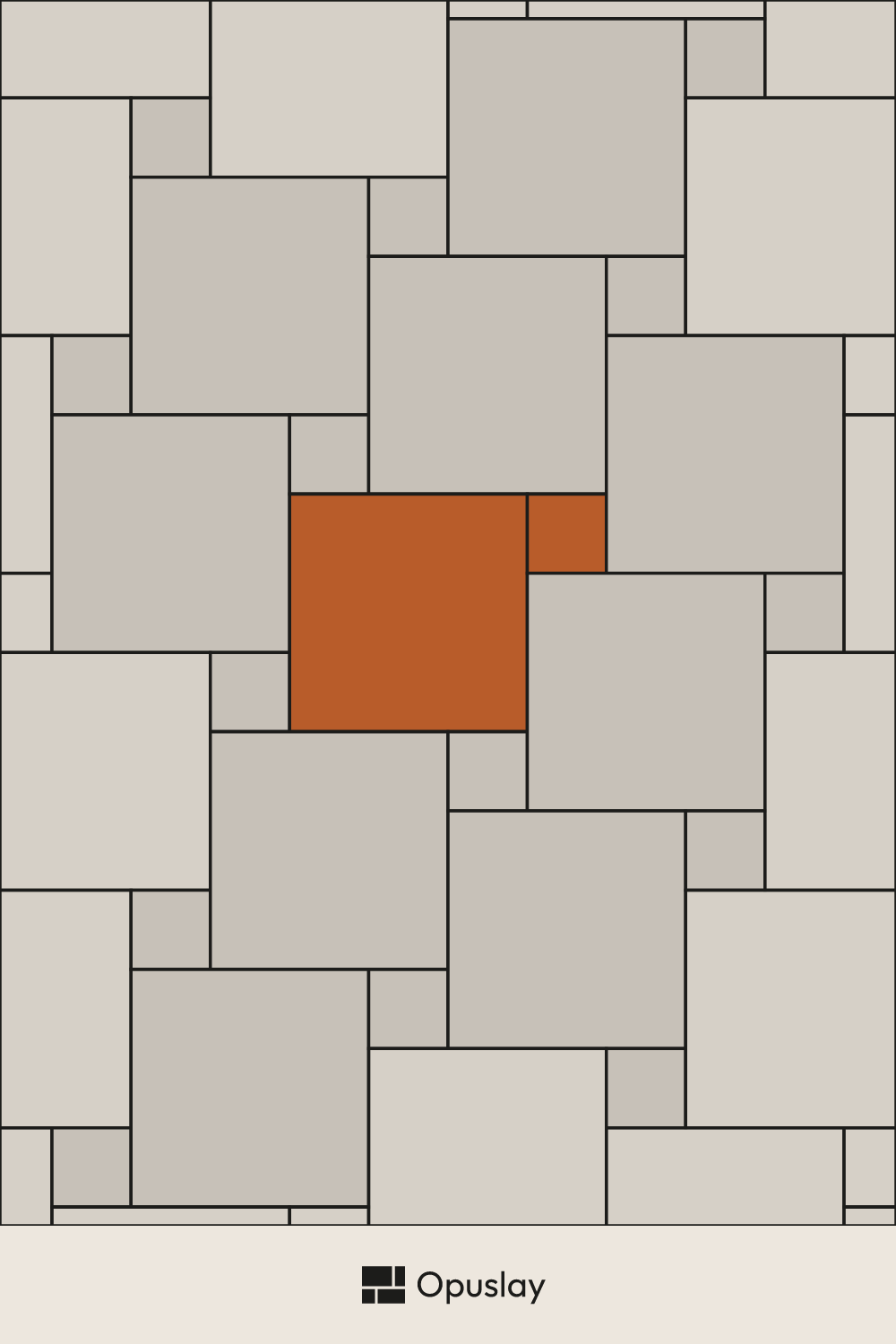

This layout repeats a 8x6 module of two tiles in two sizes — one 6x6 and one 2x2. It belongs to the Pinwheel family — see Pinwheel / Hopscotch Pattern for the reference layout.
6x6 & 2x2 Pinwheel
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 15x15 cm | 1 | 90.0% | 322 | 6.75 m² |
| 5x5 cm | 1 | 10.0% | 300 | 0.75 m² |
| Total | 2 | 100% | 622 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 15x15 cm | 315 tiles | 7.09 m² |
| 5x5 cm | 315 tiles | 0.79 m² |
Total 630 tiles · 7.88 m² (incl. 5% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 20.3 kg (1 × 50 lb bag) — recommended trowel: 6mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 5.5 kg (1 × 25 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 9.1 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 6x6 & 2x2 Pinwheel layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
