30x30 & 16x16 Pinwheel Tile Pattern Calculator

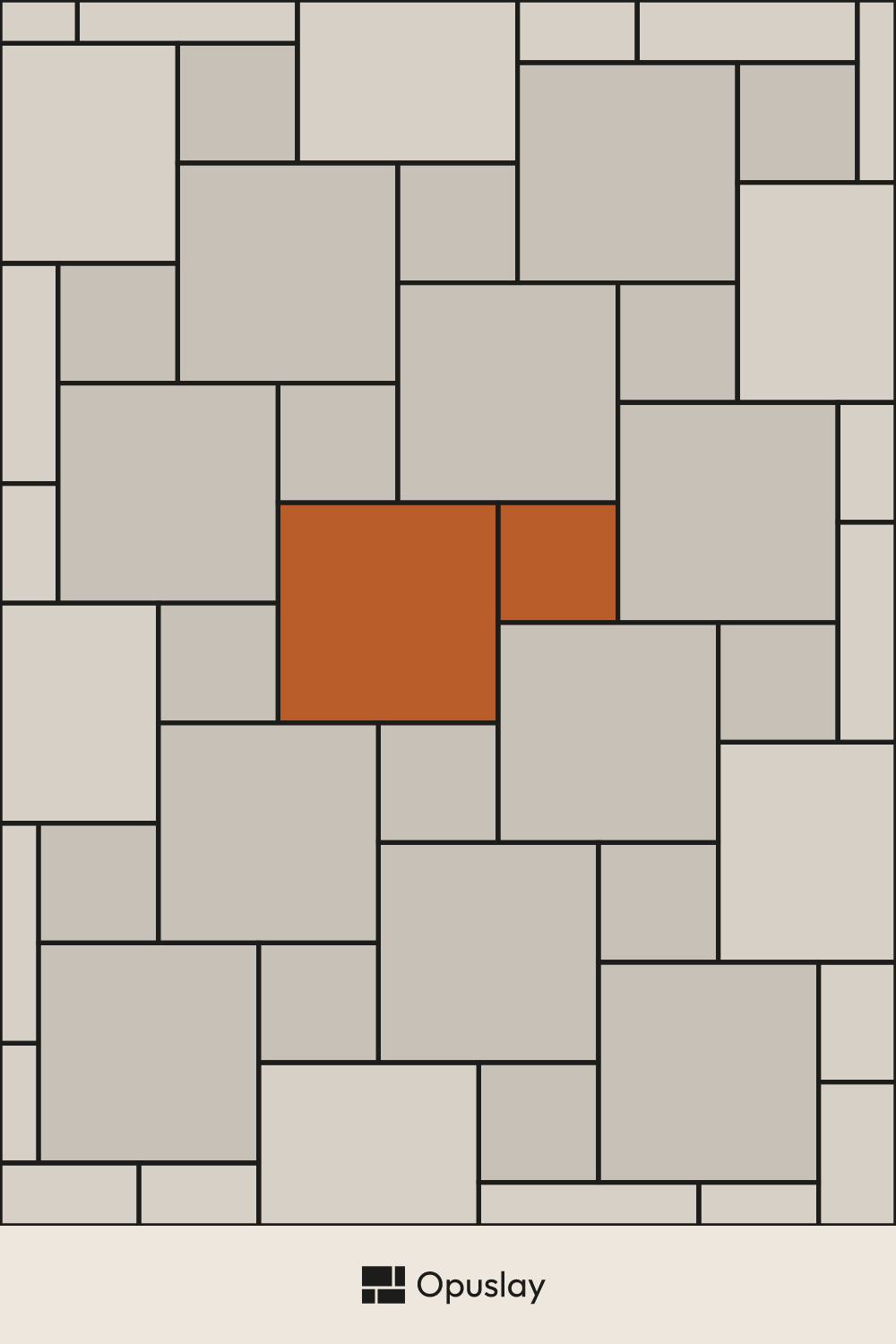

This layout repeats a 46x30 module of two tiles in two sizes — one 30x30 and one 16x16. It belongs to the Pinwheel family — see Pinwheel / Hopscotch Pattern for the reference layout.
30x30 & 16x16 Pinwheel
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 75x75 cm | 1 | 77.9% | 15 | 5.84 m² |
| 40x40 cm | 1 | 22.1% | 12 | 1.66 m² |
| Total | 2 | 100% | 27 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 40x40 cm | 12 tiles | 1.92 m² |
| 75x75 cm | 15 tiles | 8.44 m² |
Total 27 tiles · 10.36 m² (incl. 38% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 1.8 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
