8x8 & 8x16 & 16x24 & 24x24 Tile Pattern Calculator

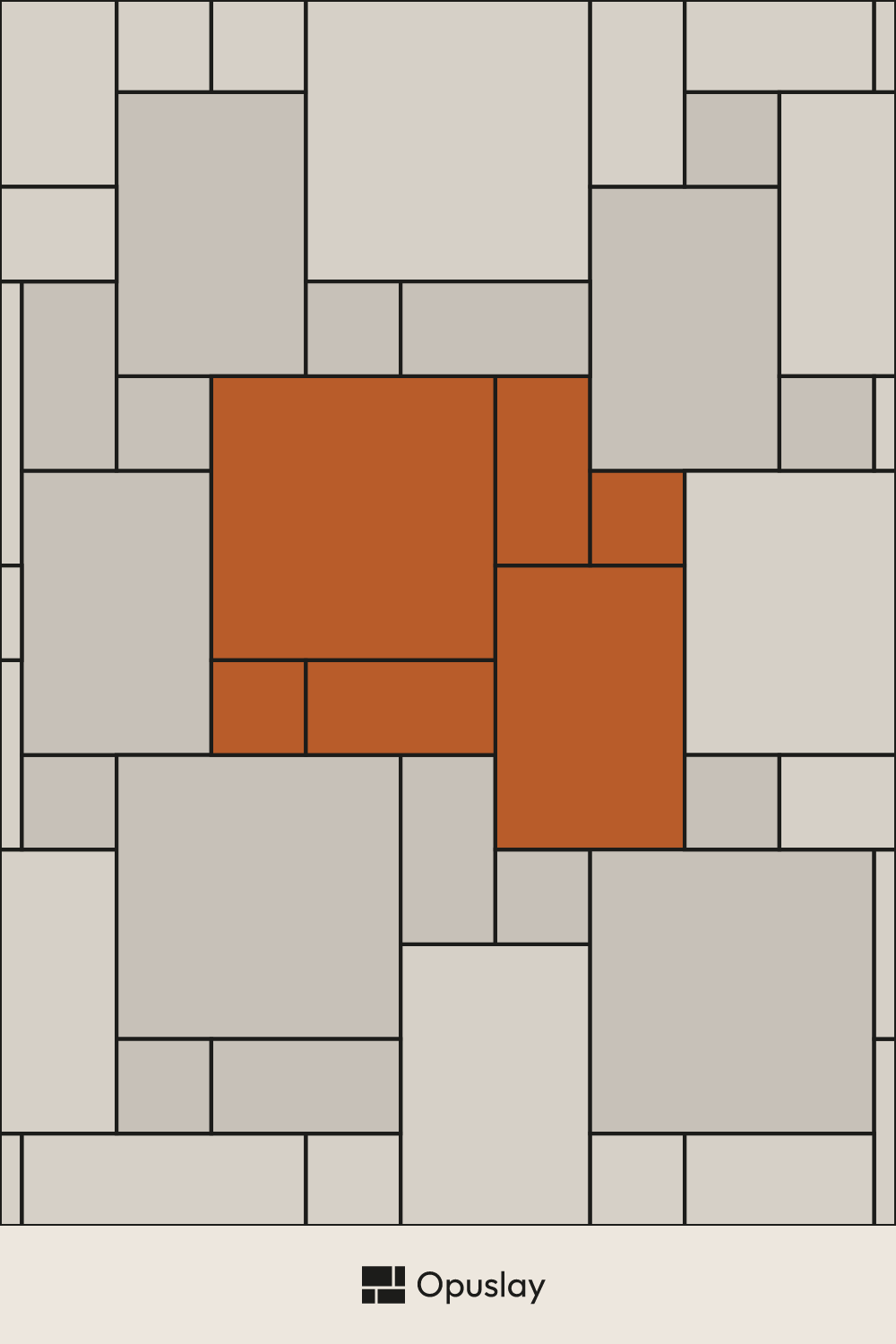

This layout repeats a 40x40 module of six tiles in four sizes — one 24x24, one 16x24, two 8x8 and two 8x16. The 24x24 tile it uses also stands on its own — 24x24 Tile Pattern.
Multi-Tile Pattern — 8x8 & 8x16 & 16x24 & 24x24
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 60x60 cm | 1 | 42.9% | 12 | 3.18 m² |
| 40x60 cm | 1 | 28.6% | 12 | 2.16 m² |
| 20x20 cm | 2 | 9.5% | 18 | 0.70 m² |
| 20x40 cm | 2 | 19.0% | 20 | 1.46 m² |
| Total | 6 | 100% | 62 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 19 tiles | 0.76 m² |
| 20x40 cm | 21 tiles | 1.68 m² |
| 40x60 cm | 11 tiles | 2.64 m² |
| 60x60 cm | 12 tiles | 4.32 m² |
Total 63 tiles · 9.40 m² (incl. 25% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.7 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 2.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
