8x8 & 8x16 & 16x16 & 16x24 (Layout 6) Tile Pattern Calculator

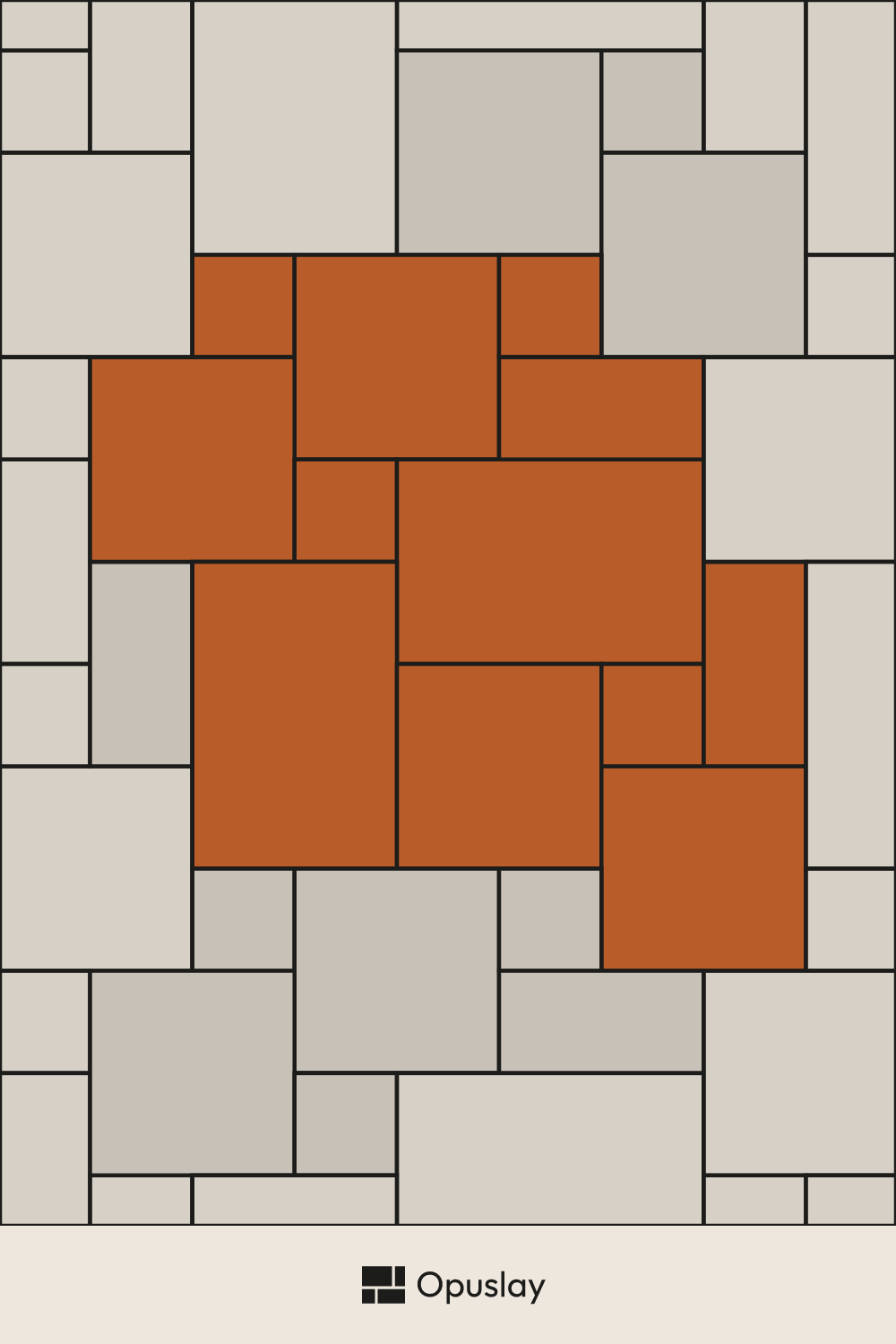

This layout repeats a 56x56 module of twelve tiles in four sizes — four 8x8, four 16x16, two 16x24 and two 8x16. The same tile sizes are laid to a different module in Versailles / French Pattern.
Multi-Tile Pattern — 8x8 & 8x16 & 16x16 & 16x24 (Layout 6)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 20x20 cm | 4 | 11.1% | 25 | 0.90 m² |
| 40x40 cm | 4 | 44.4% | 28 | 3.40 m² |
| 40x60 cm | 2 | 33.3% | 10 | 2.40 m² |
| 20x40 cm | 2 | 11.1% | 10 | 0.80 m² |
| Total | 12 | 100% | 73 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 25 tiles | 1.00 m² |
| 20x40 cm | 11 tiles | 0.88 m² |
| 40x40 cm | 26 tiles | 4.16 m² |
| 40x60 cm | 11 tiles | 2.64 m² |
Total 73 tiles · 8.68 m² (incl. 16% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.9 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.2 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Multi-Tile Pattern — 8x8 & 8x16 & 16x16 & 16x24 (Layout 6) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
See the classic Versailles / French pattern (8x8, 8x16, 16x16, 16x24)
