8x8 & 8x16 & 16x16 & 16x24 (Layout 2) Tile Pattern Calculator

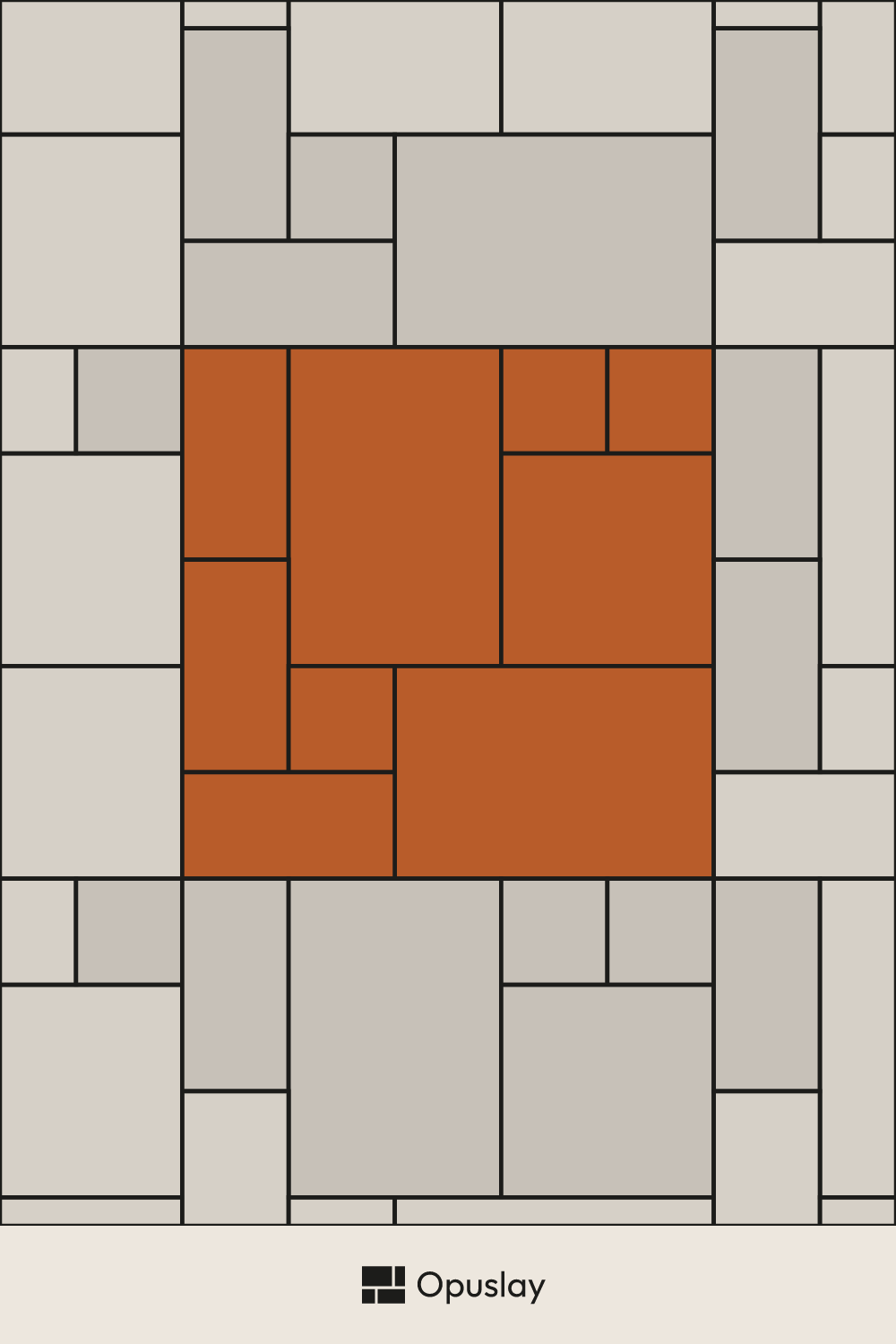

This layout repeats a 40x40 module of nine tiles in four sizes — three 8x16, two 16x24, three 8x8 and one 16x16. Working with a more common tile size? 12x24 1/3 Offset Running Bond covers the closest standard format.
Multi-Tile Pattern — 8x8 & 8x16 & 16x16 & 16x24 (Layout 2)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 20x40 cm | 3 | 24.0% | 24 | 1.74 m² |
| 40x60 cm | 2 | 48.0% | 15 | 3.48 m² |
| 20x20 cm | 3 | 12.0% | 24 | 0.96 m² |
| 40x40 cm | 1 | 16.0% | 9 | 1.32 m² |
| Total | 9 | 100% | 72 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 26 tiles | 1.04 m² |
| 20x40 cm | 25 tiles | 2.00 m² |
| 40x40 cm | 10 tiles | 1.60 m² |
| 40x60 cm | 17 tiles | 4.08 m² |
Total 78 tiles · 8.72 m² (incl. 16% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 2.0 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.3 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
