8x8 & 8x16 & 16x16 & 16x24 (Layout 1) Tile Pattern Calculator

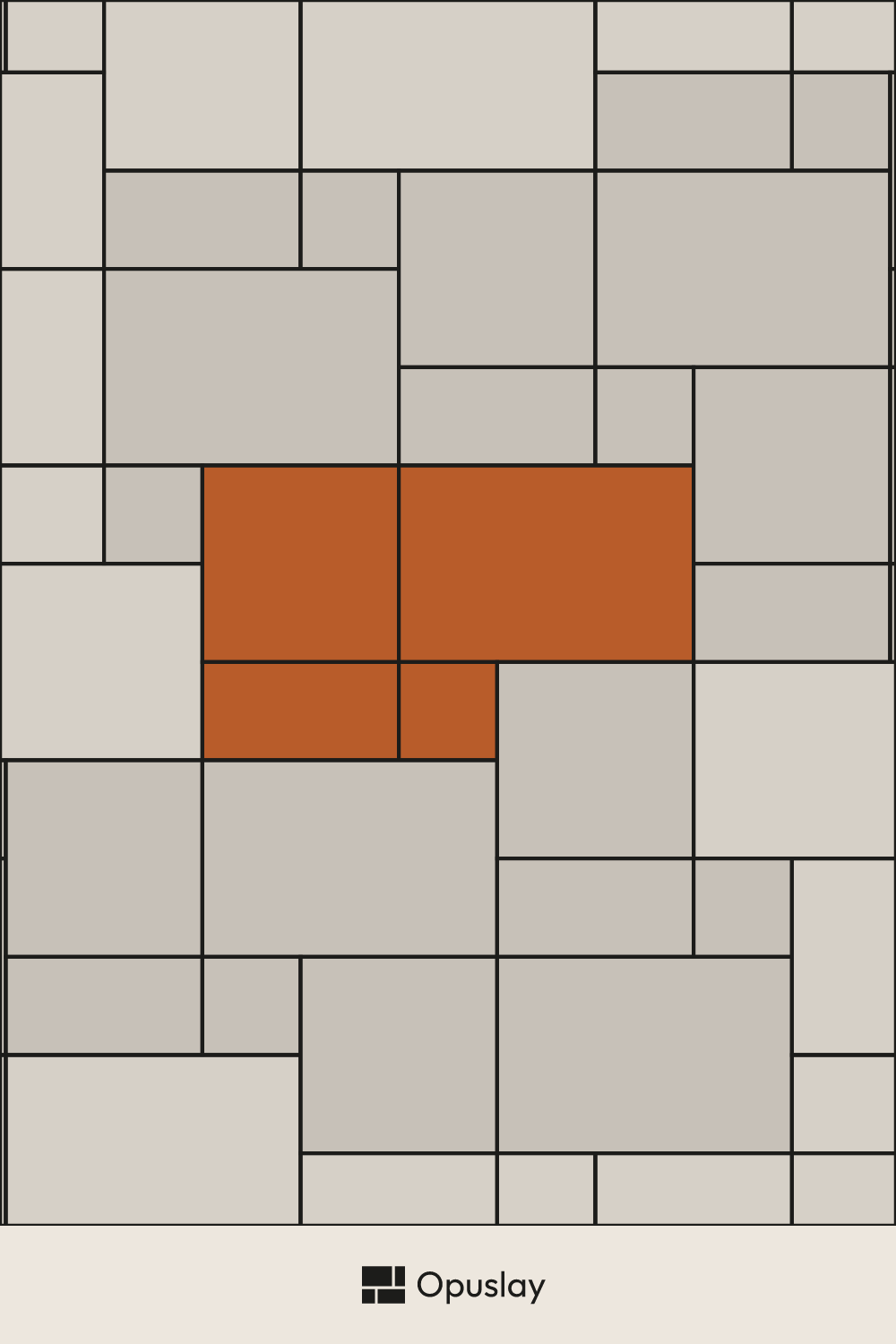

This layout repeats a 40x24 module of four tiles in four sizes — one 16x16, one 8x16, one 16x24 and one 8x8. Working with a more common tile size? 12x24 1/3 Offset Running Bond covers the closest standard format.
Multi-Tile Pattern — 8x8 & 8x16 & 16x16 & 16x24 (Layout 1)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 40x40 cm | 1 | 30.8% | 17 | 2.32 m² |
| 20x40 cm | 1 | 15.4% | 16 | 1.16 m² |
| 40x60 cm | 1 | 46.2% | 18 | 3.44 m² |
| 20x20 cm | 1 | 7.7% | 15 | 0.58 m² |
| Total | 4 | 100% | 66 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 20x20 cm | 16 tiles | 0.64 m² |
| 20x40 cm | 17 tiles | 1.36 m² |
| 40x40 cm | 17 tiles | 2.72 m² |
| 40x60 cm | 18 tiles | 4.32 m² |
Total 68 tiles · 9.04 m² (incl. 21% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.8 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 3.1 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Multi-Tile Pattern — 8x8 & 8x16 & 16x16 & 16x24 (Layout 1) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
