12x24 & 24x24 & 24x36 & 24x48 (Layout 1) Tile Pattern Calculator

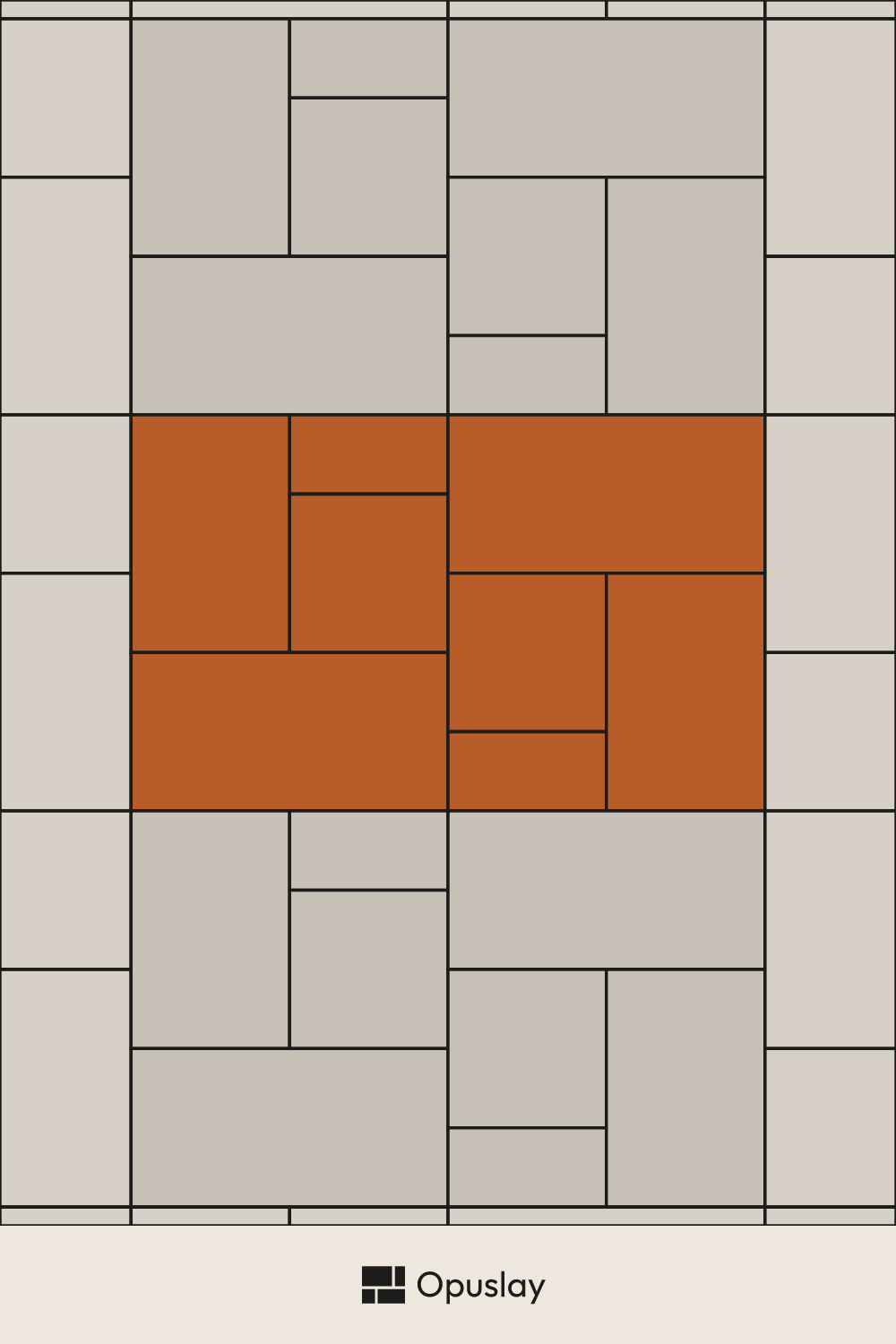

This layout repeats a 96x60 module of eight tiles in four sizes — two 24x36, two 12x24, two 24x24 and two 24x48. The 12x24 tile it uses also stands on its own — 12x24 1/3 Offset Running Bond.
Multi-Tile Pattern — 12x24 & 24x24 & 24x36 & 24x48 (Layout 1)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 60x90 cm | 2 | 30.0% | 6 | 2.94 m² |
| 30x60 cm | 2 | 10.0% | 3 | 0.54 m² |
| 60x60 cm | 2 | 20.0% | 4 | 1.32 m² |
| 60x120 cm | 2 | 40.0% | 6 | 2.70 m² |
| Total | 8 | 100% | 19 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 30x60 cm | 4 tiles | 0.72 m² |
| 60x120 cm | 7 tiles | 5.04 m² |
| 60x60 cm | 5 tiles | 1.80 m² |
| 60x90 cm | 7 tiles | 3.78 m² |
Total 23 tiles · 11.34 m² (incl. 51% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.0 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 1.7 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the Multi-Tile Pattern — 12x24 & 24x24 & 24x36 & 24x48 (Layout 1) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
