24x24 Tile — Running Bond
The 24x24 running bond pattern lays the same large 24x24 tile with a 1/3 offset between rows instead of the standard aligned grid, following ANSI guidance to limit lippage on tile this size.
Last updated: 2026-07-05

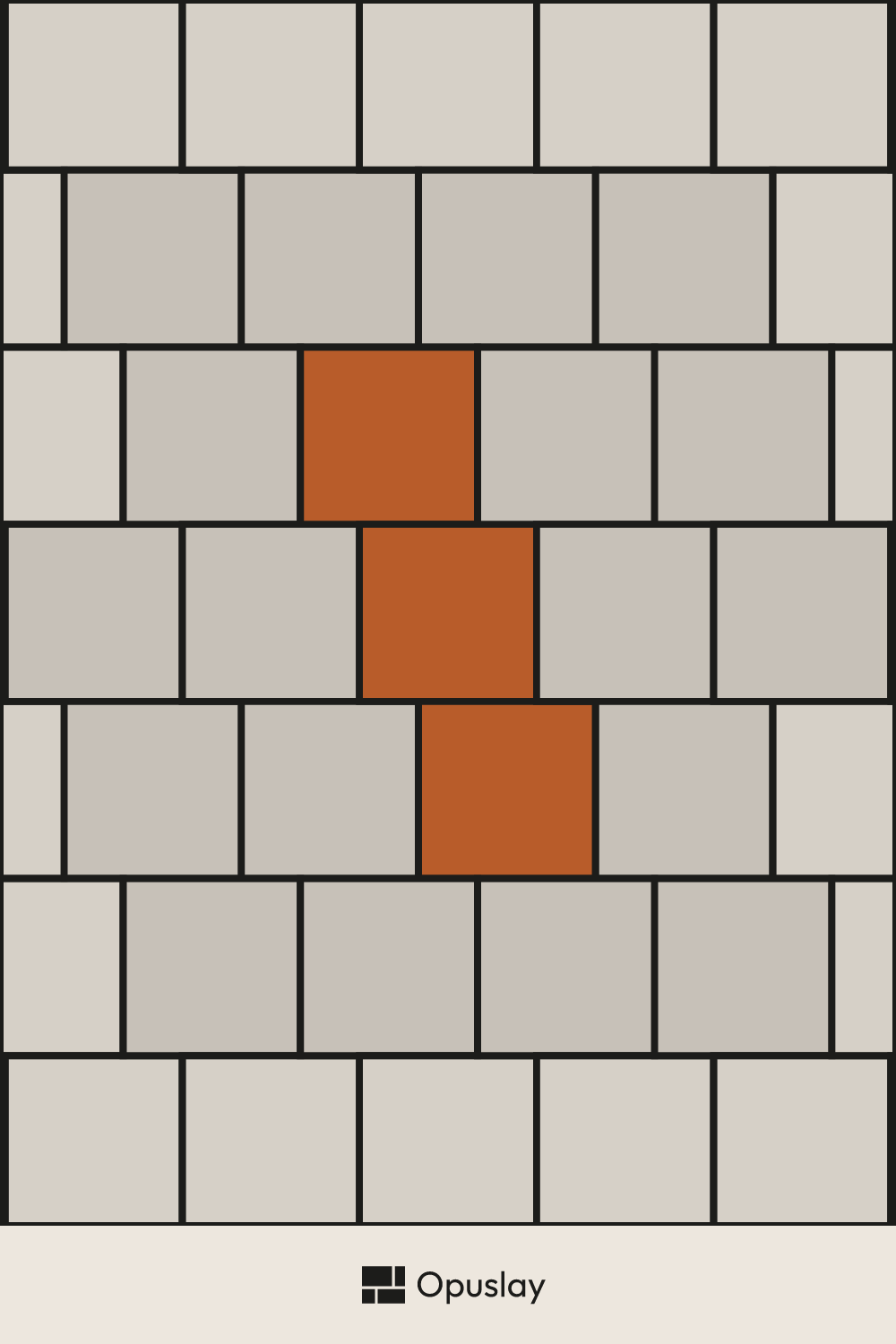

24x24 Tile — Running Bond
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 60x60 cm | 3 | 100.0% | 28 | 7.50 m² |
| Total | 3 | 100% | 28 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 60x60 cm | 26 tiles | 9.36 m² |
Total 26 tiles · 9.36 m² (incl. 25% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 40.5 kg (2 × 50 lb bags) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1.1 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 1.9 kg (1 × 10 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 24x24 Tile — Running Bond layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 24x24 Tile — Running Bond
At 24 inches per side, running bond on this tile always uses the reduced 1/3 offset recommended by ANSI A108.02 for tile 15 inches or larger, rather than a traditional 50% half-lap.
Offsetting a square 24x24 tile is a deliberate stylistic choice, occasionally used to add visual texture to a large floor, though it remains far less common than the standard stack bond grid for this size.
Frequently Asked Questions
What offset should I use for 24x24 running bond?
A 1/3 offset is recommended for 24x24 tile rather than 50%, per ANSI A108.02 guidance, to limit lippage risk on a tile this large.
Why is running bond less common for 24x24 tile than stack bond?
Because the tile is square, an offset direction doesn't follow naturally from the shape, and most large-format porcelain is marketed and installed as a straight grid instead.
Does 24x24 running bond need rectified tile?
Yes — as with stack bond, rectified (precisely calibrated) tile is recommended at this size regardless of offset, to minimize visible size inconsistency at the joints.
How much waste should I allow for a 24x24 running bond floor?
A standard 10% waste allowance applies, the same as for a stack bond layout of the same size.
Prefer a straight grid look instead? See the stack bond (straight grid) layout
