1x3 Chevron Mosaic Tile Sheet

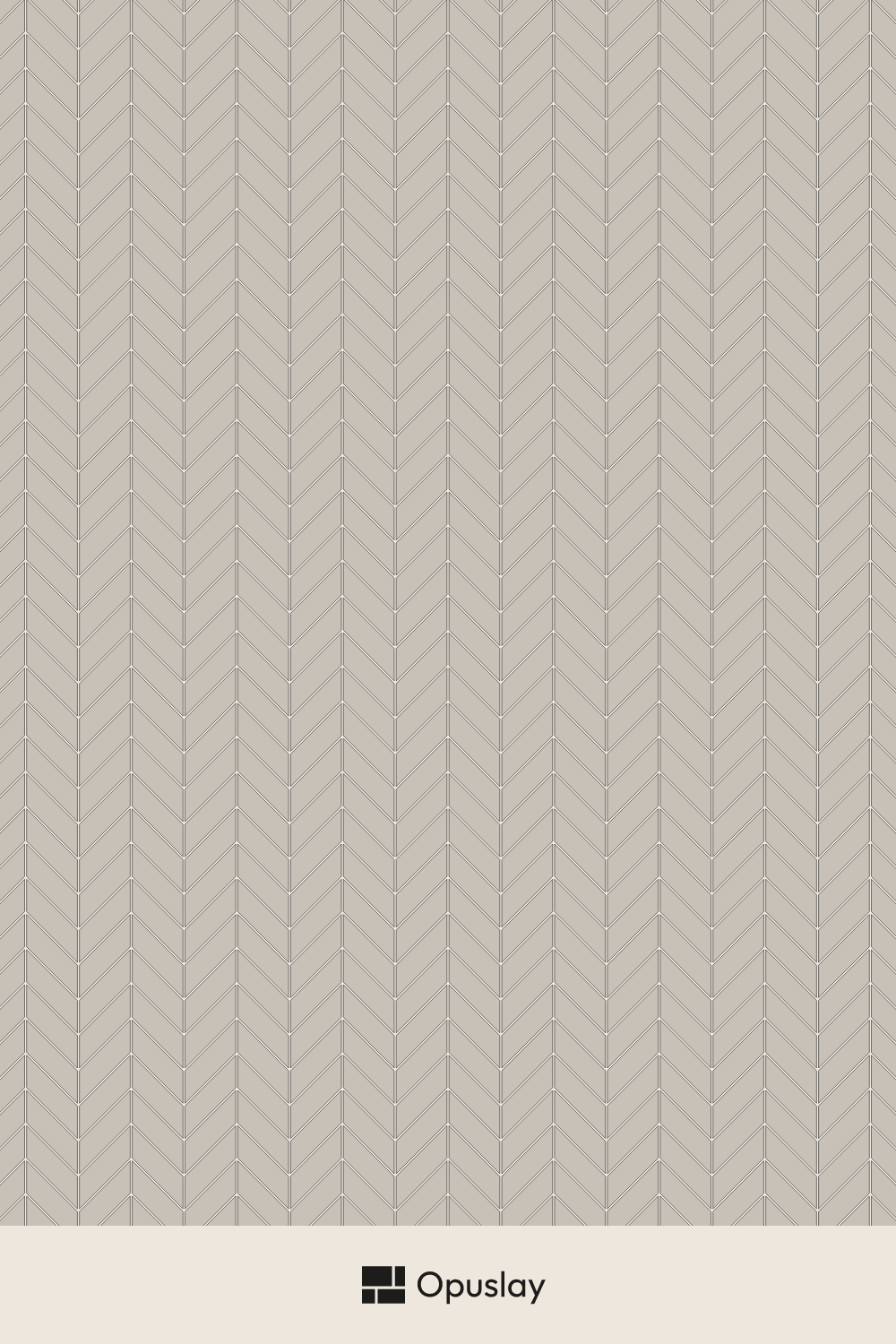

A chevron mosaic tile sheet is not laid plank by plank: the strips arrive already mitred, spaced and mesh-mounted, so what you set — and what you buy — is the sheet. The chip sold this way is a 1x3 plank cut at 45° at both ends, forty-eight of them to a sheet, and the mitre is the whole point. Because both cut faces sit square to the floor line, the two arms of every V meet along a single clean vertical seam — which is exactly what separates a chevron from a herringbone mosaic sheet, whose uncut strips meet in a staggered step instead. Opuslay lays the sheets against your real room, counts whole sheets plus the cuts at each edge, and sizes the grout for a joint network that is denser than any rectangular mosaic built on the same nominal chip.
Last updated: 2026-08-18
1x3 Chevron Mosaic Tile Sheet
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 28.28x31.82 cm | 1 | 100.0% | 90 | 7.50 m² |
| Total | 1 | 100% | 90 | 7.50 m² |
What you'll need to buy
Sheets to buy
| 28.28x31.82 cm | 93 sheets | 8.37 m² |
Total 93 sheets · 8.37 m² (incl. 12% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 19.1 kg (1 × 50 lb bag) — recommended trowel: 5mm V notch
- Grout — mosaic sheets use far more than flat tile:
- ≈ 8.3 kg (1 × 25 lb bag) — dense mosaic joint network
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
About 11% of the surface is joint, set by the sheet mesh — the calculator sizes grout for that dense network, not a flat-tile rate. Assumes 6mm tile depth; thicker tiles need more.
Share & export
Save the 1x3 Chevron Mosaic Tile Sheet layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 1x3 Chevron Mosaic Tile Sheet
Mitring is what makes a chevron expensive, and mesh mounting is what makes it affordable. Laid from loose planks, a chevron needs every single strip cut at 45° at both ends on exactly the same angle — get it slightly wrong and the V drifts out of true a little more with every row, until the drift is visible from across the room. It is one of the slowest patterns to set by hand and the least forgiving of a wandering cut. Mounting the mitred planks face-up on a mesh backing moves all of that into the factory: the angle, the spacing and the alignment are fixed before the sheet reaches you, and the installer places a square foot at a time. It is also why the joint between chips is a property of the product rather than a decision on site.
Two consequences follow, and the second one is rarely costed. The adhesive side is the usual mosaic caution: mosaic planks are thin, and a large notched trowel pushes so much adhesive up between them that it fills the joints from below and leaves no room for grout — Opuslay selects a small V-notch for sheet mosaic rather than the trowel the sheet's own footprint would otherwise suggest. The grout side belongs to the chevron alone. A mitred plank has a longer perimeter than a rectangle of the same nominal size, because cutting both ends at 45° stretches them by half as much again; more perimeter around the same area means more joint. On this 1x3 chip roughly 11.5% of the surface is joint, against 10.5% for the same nominal chip laid as a rectangular herringbone — about 10% more grout on an identical wall.
How Chevron Mosaic Sheets Meet Each Other
The joint between two sheets is not yours to choose: it is the joint inside the sheet. The chips are fixed on the mesh at the factory spacing, so the only gap that reads as continuous across a wall is the one that matches the gap between two neighbouring chips. Push two sheets tighter than that and the seam shows up as a dark line; leave them wider and it shows up as a pale one. Setting mosaic is largely the job of holding that single distance constant everywhere, and it is why mosaic is set in small runs rather than pushed into place a wall at a time.
On a chevron there is a second condition, and it is the one that catches people out: the V has to carry on across the join. A sheet holds a whole number of complete Vs, never a fraction, so the pattern continues by itself — but only if the chip spacing is held across the seam as well as inside it. Squeeze one row of sheets and the peaks on the row above no longer sit over the peaks below them; the wall then reads as a series of panels rather than one continuous chevron, and no amount of grouting hides it.
The sheet edge helps here, because it is not straight. No plank is cut at the factory, so the top and bottom of a chevron sheet are a zigzag of peaks and troughs, and the teeth of one sheet drop into the hollows of the next. Sheets interlock rather than butt — which makes the alignment largely self-correcting, and makes each sheet cover rather less wall than its outline suggests.
Why a Chevron Sheet Covers Less Than It Measures
Measure a chevron mosaic sheet across its outline and you get roughly 12.5 by 13.2 inches — call it a square foot and a sixth. But the top row of teeth is not surface you gain: it drops into the sheet above it. What each sheet actually adds is its repeat, 12.5 by 11.1 inches, about 0.97 sq ft. The outline overstates the coverage by roughly a fifth, and that gap is pure geometry rather than any kind of waste.
Sellers quote the outline. That is why the same product turns up labelled 12x12, 12x13.5 or 13x13.5 depending on the shop — all of them measuring the toothed rectangle the sheet fits inside rather than the surface it covers — and why a sheet count worked out by dividing your wall area by the label runs short. Opuslay is built on the repeat, not the outline: the sheet in the calculator is the 12.5 by 11.1 inch translation cell, so the count you get is the number you actually have to buy.
The practical version is short. Take the coverage figure the seller states in square feet rather than the two dimensions on the box, and where only the dimensions are given, assume the shorter of the two overstates the real repeat. Then set your wall dimensions above and let the layout count the sheets — including the part-sheets at each edge, where a cut through a chevron mosaic usually falls in the mesh between planks rather than through the stone.
Frequently Asked Questions
What is the difference between chevron and herringbone mosaic?
The cut. On a chevron the planks are mitred at 45° at both ends, so the two arms of each V meet point to point along a straight vertical seam and the pattern reads as a continuous zigzag. On a herringbone the planks are plain rectangles, so one butts into the side of its neighbour and the seam is a staggered step. Same strips, same sheet size, entirely different line — and the mitre is why chevron sheets cost more. If you can see an unbroken zigzag running the height of the wall, it is a chevron.
How many chips are on a chevron mosaic sheet?
Forty-eight on the 1x3 sheet modelled here — six alternating columns of planks, eight rows deep, which is three complete Vs across. The count follows from the geometry rather than from a round number: a sheet has to hold a whole number of Vs in both directions, because a plank cut in the factory would leave a raw edge in the middle of the pattern.
How is a chevron chip measured?
It depends on the manufacturer, and it is worth checking before you compare two products. The length may be quoted along the long side of the plank, or right across the piece from point to point — the second is longer, and on a 45° mitre noticeably so. The width may be the short side of the parallelogram, or the perpendicular height between its two long edges, which are different numbers for the same chip. A nominal 1x3 is a family name rather than a measurement; when the sheet's own dimensions and the piece count are both given, they pin the geometry down far better than the chip label does.
Does a chevron mosaic sheet really cover a square foot?
Not quite, and the shortfall is bigger than you would expect. The sheet's outline is about 12.5 by 13.2 inches, but its zigzag top drops into the sheet above, so the surface it genuinely adds is 12.5 by 11.1 inches — around 0.97 sq ft against an outline of 1.15. Buy on the seller's stated coverage in square feet rather than on the two dimensions printed on the box, or you will be roughly a fifth short.
Does chevron mosaic need more grout than herringbone?
Yes, by about a tenth for the same nominal chip. Cutting both ends of a plank at 45° makes those ends half as long again, so a mitred plank carries more perimeter around the same area than a rectangle does — and joint follows perimeter. On this layout roughly 11.5% of the surface is grout, against 10.5% for a rectangular herringbone on the same nominal chip. Depth matters more still: grout fills each joint over the full thickness of the chip, so a thicker mosaic takes proportionally more. Check your grout manufacturer's coverage figures for small-format mosaic before you order.
How do I keep the V lined up from sheet to sheet?
Hold the same gap between sheets as there is between chips, and let the toothed edges do the rest — the peaks of one sheet sit in the hollows of the next, so a correctly spaced sheet only goes on one way. Set a level line for the first row and work outwards from it rather than from a corner, since a chevron shows a drift far more plainly than a square mosaic does. Where a sheet has to be trimmed at a wall, cut through the mesh between planks wherever the fit allows: a part-plank at an edge is much less visible than a broken zigzag in the field.
