4x12 Tile Pattern

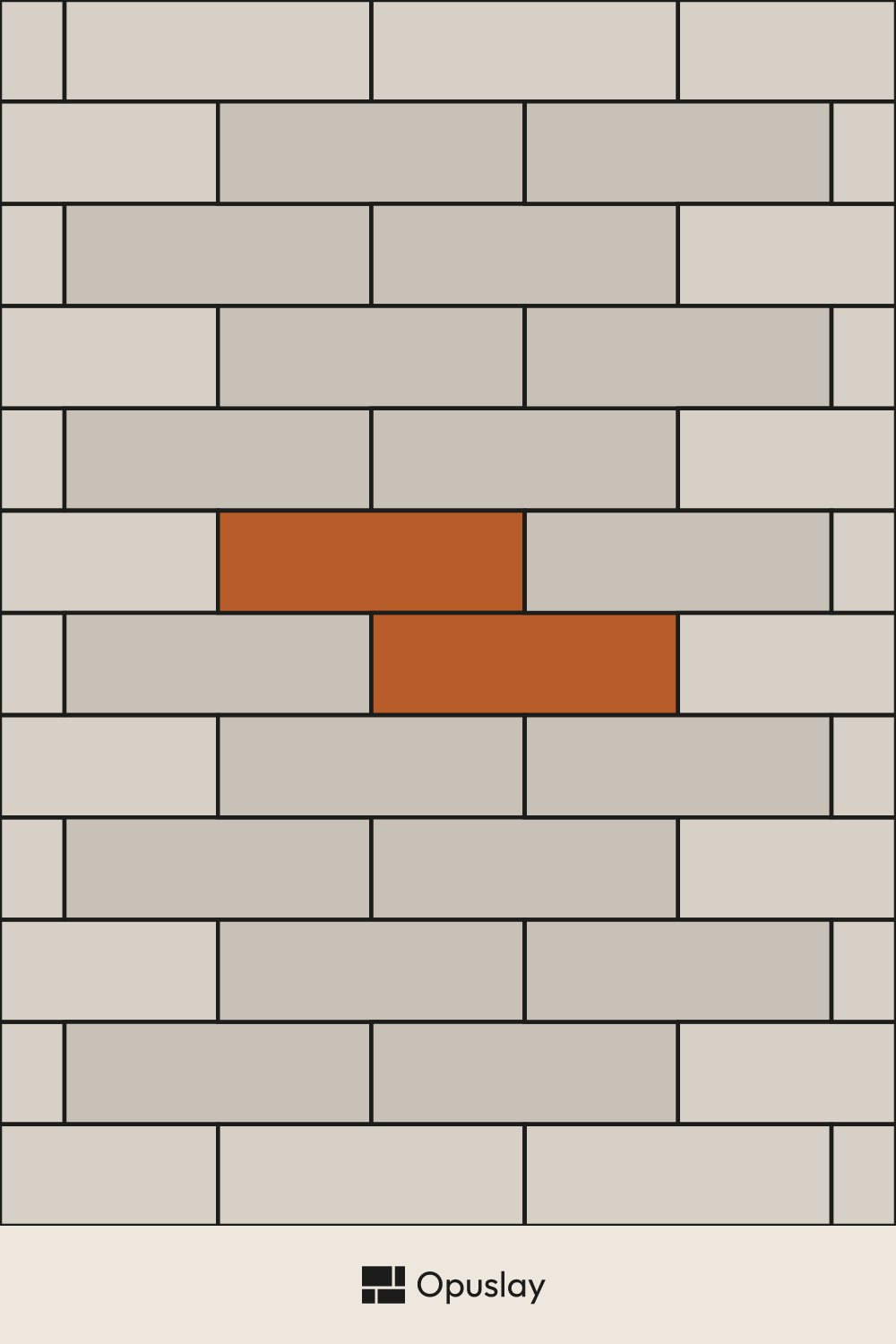

The 4x12 running bond pattern lays a single 4"x12" tile — a 1:3 ratio, more elongated than classic subway tile — with a 50% offset between rows, creating long horizontal brick-joint lines well suited to contemporary kitchens and bathrooms.
Last updated: 2026-07-05
4x12 Tile Pattern
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 10.16x30.48 cm | 2 | 100.0% | 262 | 7.50 m² |
| Total | 2 | 100% | 262 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 10.16x30.48 cm | 270 tiles | 8.36 m² |
Total 270 tiles · 8.36 m² (incl. 11% cuts & breakage)
Adhesive & grout
- Thin-set adhesive: ≈ 24.4 kg (2 × 50 lb bags) — recommended trowel: 10mm notch
- Grout — the tile sets the joint width, not you:
- ≈ 4.5 kg (1 × 10 lb bag) — 3mm joint, rectified / tight-set tile
- ≈ 7.5 kg (1 × 25 lb bag) — 5mm joint, natural or non-rectified tile
Adhesive: allow a little over on an uneven substrate, or if you back-butter large tiles — both eat more than a flat bed.
Grout: the 25 lb bag is the usual size (10 lb for small jobs). Buy it in one go and stick to a single bag size: bags from different batches can dry to slightly different shades.
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product — thicker tiles need more.
Share & export
Save the 4x12 Tile Pattern layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
About the 4x12 Tile Pattern
The 1:3 proportion of 4x12 tile produces a more linear, contemporary look than the 1:2 ratio of traditional 3x6 subway tile, and became popular as elongated rectangular formats grew in demand through the 2010s.
Running bond remains the default layout for 4x12 tile because the offset joints help disguise the natural length variation that can appear across a long, narrow tile.
Frequently Asked Questions
What offset works best for 4x12 tile?
A 50% offset is the most common choice for 4x12 tile, keeping the classic subway-style brick joint even at this more elongated 1:3 ratio.
Is 4x12 tile the same pattern as subway tile?
It uses the same running-bond principle as subway tile, but with a longer, more linear 1:3 proportioned tile instead of the traditional 1:2 ratio of 3x6 subway tile.
How much waste should I allow for 4x12 running bond?
A standard 10% waste allowance is typical, with a bit more if the wall includes many corners, niches, or a decorative border.
Can 4x12 tile be laid with a smaller offset, like 1/3?
Yes — a 1/3 offset is sometimes used on 4x12 tile for a less repetitive look, though the classic 50% half-lap remains the most requested layout at this size.
