12x24 & 24x24 & 24x48 (V3) Tile Pattern Calculator

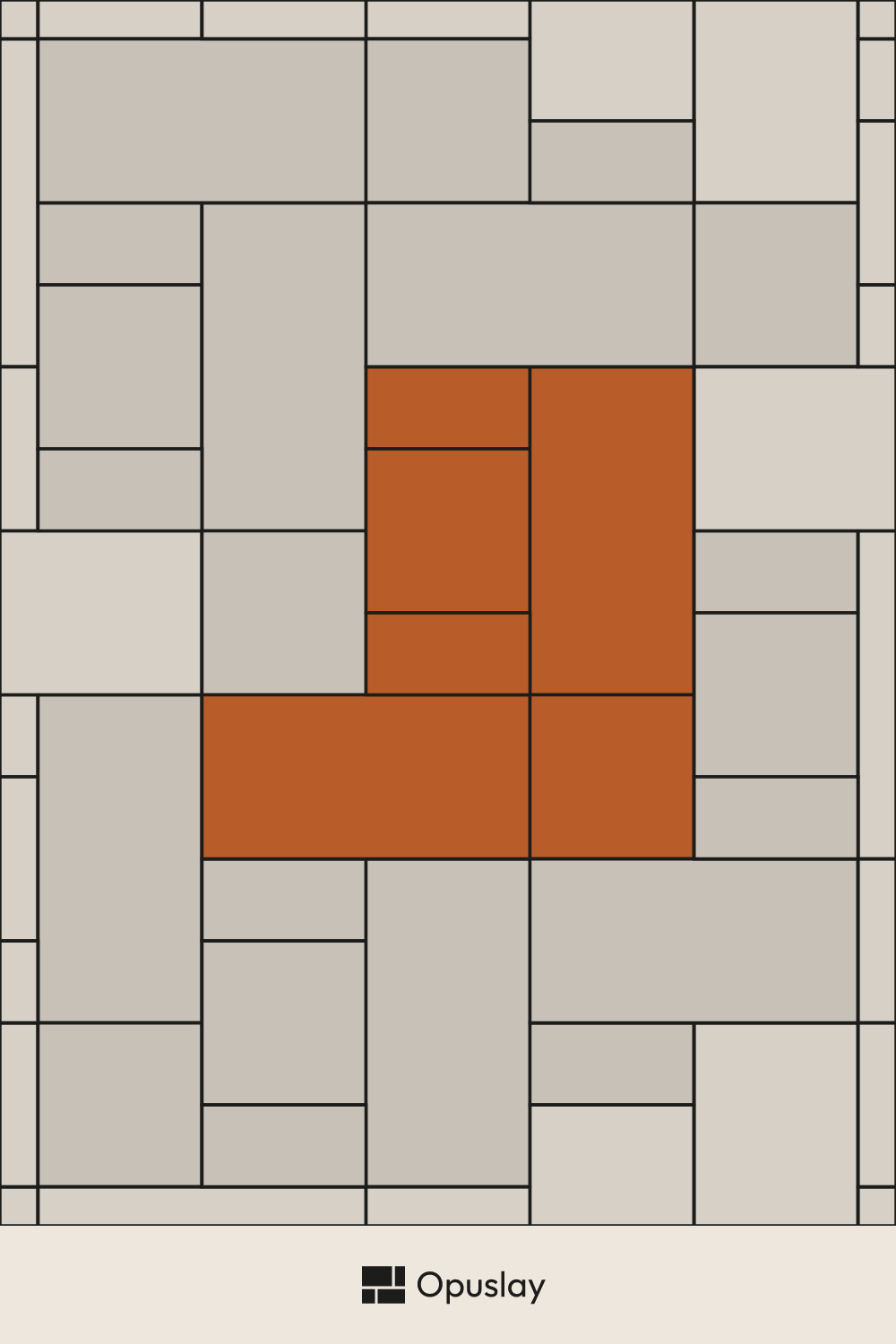

This layout repeats a 72x72 module of six tiles in three sizes — two 12x24, two 24x24 and two 24x48. The 12x24 tile it uses also stands on its own — 12x24 Tile Pattern.
Three-Tile Pattern — 12x24 & 24x24 & 24x48 (V3)
Opuslay — tile layout worksheet- Room:
- 3 m × 2.5 m
- Units:
- Metric (cm / m²)
- Anchor:
- Left · Top
- Layout angle:
- Straight
- Tile colours:
- Single colour
Material breakdown
| Format | Qty / Pattern | Share | Qty / Room | Area / Room |
|---|---|---|---|---|
| 30x60 cm | 2 | 14.3% | 6 | 0.96 m² |
| 60x60 cm | 2 | 28.6% | 6 | 2.04 m² |
| 60x120 cm | 2 | 57.1% | 9 | 4.50 m² |
| Total | 6 | 100% | 21 | 7.50 m² |
What you'll need to buy
Tiles to buy
| 30x60 cm | 7 tiles | 1.26 m² |
| 60x120 cm | 10 tiles | 7.20 m² |
| 60x60 cm | 7 tiles | 2.52 m² |
Total 24 tiles · 10.98 m² (incl. 46% cuts & breakage)
- Thin-set adhesive: ≈ 3 bags (22.7 kg) — recommended trowel: 12mm notch, large format
- Grout — the tile sets the joint width, not you:
- ≈ 1 bag (11.3 kg) — 3mm joint, rectified / tight-set tile
- ≈ 1 bag (11.3 kg) — 5mm joint, natural or non-rectified tile
It's the tile that decides the joint, not the setter — dry-lay a section to find your width. Assumes 9.5mm tile depth; adjust for your product.
Share & export
Save the Three-Tile Pattern — 12x24 & 24x24 & 24x48 (V3) layout to your moodboard, or send the link to your tiler — it reopens with your room dimensions.
